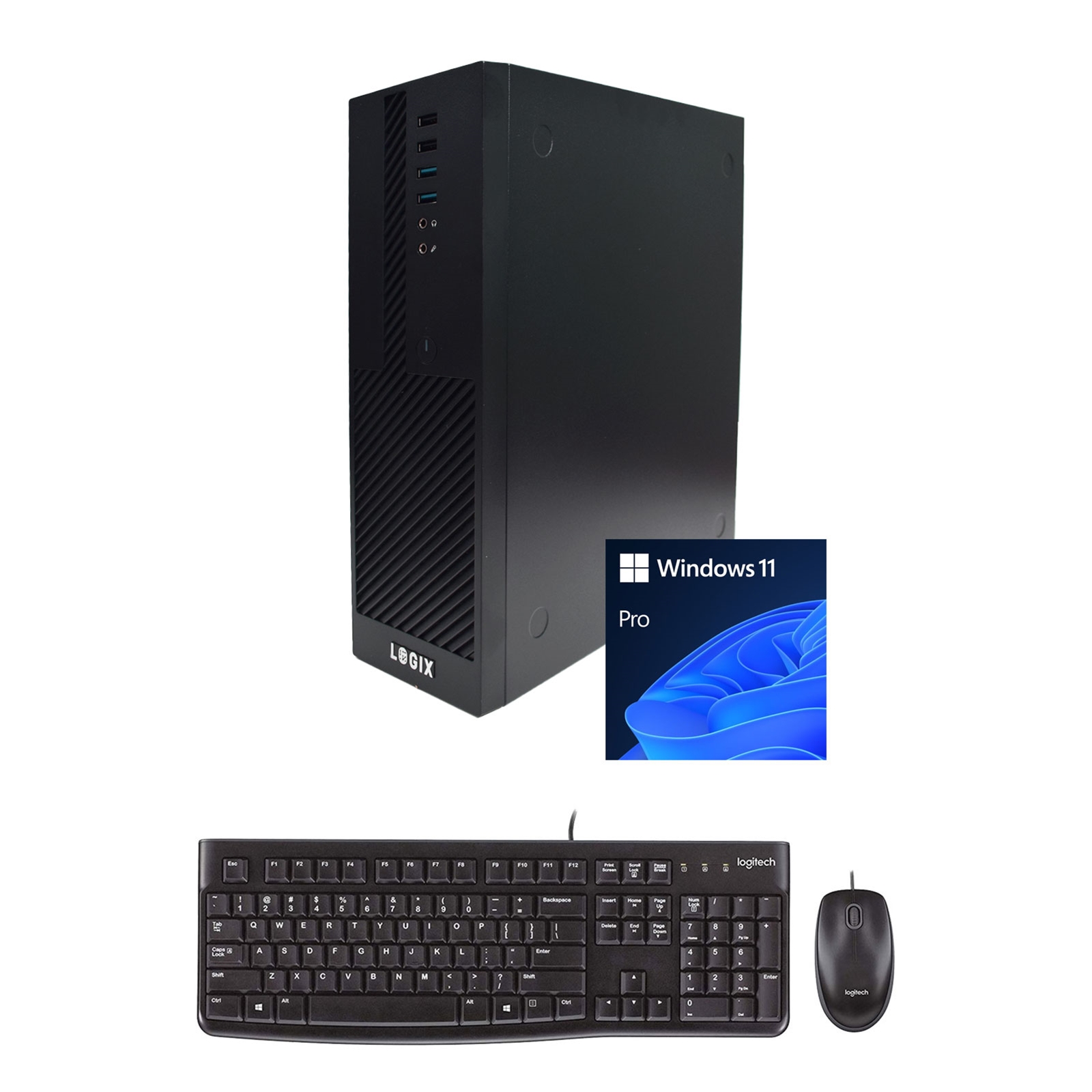

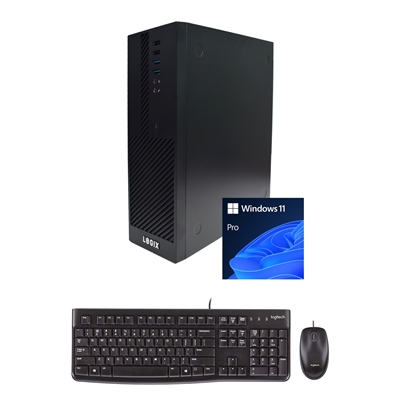

LOGIX 12th Gen Intel Core i5 6 Core Small Form Factor SFF Business / Education PC with 16GB RAM, 500GB SSD, Windows 11 Pro, Keyboard, Mouse & 3 Year Warranty

Description

Main Features:
Discreet LOGIX small form case that balances nicely between a small size and room enough for powerful components and efficient cooling.
Powerful 12th Gen Intel Core i5 processor with 6 cores and 12 processing threads that delivers a base speed of 2.50GHz up to a Turbo Boost of 4.40GHz.
Kingston Technology 16GB DDR4 memory (with space to expand your memory if you wish).
Kingston Technology 500GB PCIe 4.0 NVMe SSD, a superfast hard drive that will load programmes, open large files and transfer data much, much faster than a traditional mechanical hard drive.

The LOGIX S3-5165P is a great value and discreet small form factor business PC. Whether you’re working on large reports, surfing the Internet, presenting or participating in online meetings, or a bit of everything, its powerful 6-core 12th Gen Intel i5 processor, cutting edge graphics, fast memory and ample storage will make it all a breeze.

It’s a true workhorse, but it’s been hand-built in the UK with all the care and attention of a custom-made PC, just without the flashing lights or even flashier pricetag. It’s built to be used all-day, reliably and, thanks to its small size, sit discreetly on or under a desk, freeing up physical and mental space and allowing you to concentrate on the task(s) at hand.

Built with Cyber Security in-mind, the LOGIX S3-5165P has a wired-only Internet connection, reducing a major point of cyber attacks, and Microsoft Windows 11 Pro has been installed and updated, ready-to-go. It’s bloatware free, no additional software is installed, so there’s no spending hours removing programs and files you don’t need that slow your PC down. We’ve even included a Logitech MK120 keyboard and optical mouse so you can get going straight away.

Built to the highest of standards and featuring world renown brands, this PC is futureproofed and designed to last, which is why it comes with a full 3-year warranty. The World’s most popular operating system, Windows 11 Pro, is preinstalled – you just need to turn it on and follow the instructions in the Quick Start Guide – Reliability and security built in.

Specification:

Operating System: Windows 11 Pro
Processor: 12th Gen Intel Core i5-12400
Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4 – additional memory slot available)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)
Motherboard: Gigabyte H610M Ultra Durable Motherboard
Case: LOGIX Small Form Factor
Connections:
Front –
2 x USB-A 3.0
2 x USB-A 2.0
3.5mm HD microphone & audio
Back:
2 x PS/2
1 x VGA
1 x DVI-D
1 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 1Gbps GbE LAN
Peripherals: Logitech MK120 Wired Keyboard & Mouse
Warranty: 3 years – parts and collection included (UK mainland only)

Processor
Intel Core i5 12400 2.50GHz 6 Core LGA 1700 Alder Lake Processor, 12 Threads, 4.40GHz Boost, Intel UHD 730 Graphics

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.40GHz

Memory
Kingston Technologies RAM 16GB No Heatsink DDR4 3200MHz System Memory
Voltage: 1.20V
Latency Timing: CL22
Speed: 3200MHz (PC4-25600)
2 x 8GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV2 (SNV2S/500G) 500GB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 3500 MB/s, Write 2100 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 3100MB/S
Write: Up to 2500MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software – installed and up to Date. No Bloatware

Card Reader
No Card Reader Fitted

Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Power Supply
300w TFX Pre-Fitted PSU

Motherboard
Gigabyte H610M S2H V2 Motherboard, LGA1700 Socket, Micro ATX, DDR4, PCIe Gen3 x4 M.2

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
LOGIX Small Form Purpose Built Robust Chassis

Drive Bays
5.25″ x 0
3.5″ x 1
2.5″ x 2

IO Ports
2 x USB 3.0
2 x USB 2.0
HD Mic
HD Audio
Power

Cooling
1 x 80mm fan included

Dimensions
321mm x 95mm x 283mm (W x H x D)

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
