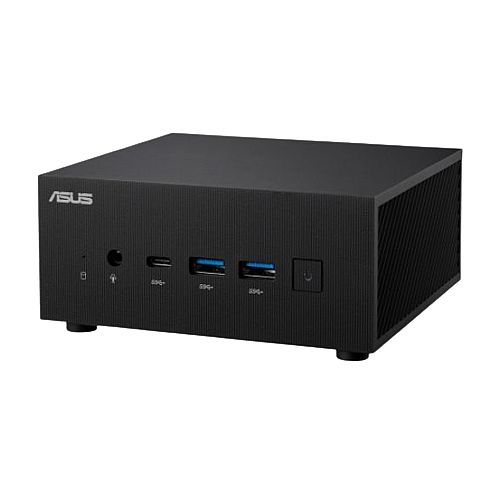

Asus Mini PC PN52 Barebone (PN52-B-S5055MD), Ryzen 5 5600H, DDR4 SO-DIMM, 2.5″/M.2, 2x HDMI, DP, USB-C, 2.5G LAN, Wi-Fi, Military-Grade Durability, VESA – No RAM, Storage or O/S

Asus Mini PC PN52 Barebone (PN52-B-S5055MD), Ryzen 5 5600H, DDR4 SO-DIMM, 2.5″/M.2, 2x HDMI, DP, USB-C, 2.5G LAN, Wi-Fi, Military-Grade Durability, VESA – No RAM, Storage or O/S

Compare

602.38 incl. Vat

30 in stock

SKU: PCAUPN52BS5055MD Category: Tag:

Description

Ultra-compact mini PC with AMD Ryzen™ 5000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen3 x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E



  • Powered by the latest AMD Ryzen™ 5000H Series Processor with Radeon™ graphics
  • Quad-4K displays support and 8K UHD support**
  • Support 7 USB ports, including 2 x Type C ports, and on-board dual HDMI ports
  • Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
  • Military-grade durability: Adheres to the MIL-810H military standards for outstanding quality and reliability
  • Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
  • Onboard 2.5GbE LAN delivering faster Ethernet connectivity
  • Multi-storage design, support up to up to 2x M.2 SSD and 1x HDD
  • Integrated Wi-Fi 6E and Bluetooth for easy cordless connections





System & CPU Performance

ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.

Graphics Performance

ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.

4K Resolution & Quad Display Support

ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

*Configurable ports are confirmed SKU before configuring.
*Configurable – VGA ports can not support 4K due to transfer speed limit.
**High resolution/multi displays requires sufficient memory bandwidth

Ultra-realistic 8K Visuals

ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

*High resolution/multi displays requires sufficient memory bandwidth



USB Power Delivery Input

ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

*Devices need to support at least 20V/4.5A power delivery



Easy Upgrades

An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that’s required is a screwdriver.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Multi-storage Design

ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5-inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.

Military-grade Durability

ASUS ExpertCenter PN52 is subjected to rigorous MIL-STD-810H durability tests, enduring extreme temperatures and humidity, high altitude, plus drop and vibration tests to ensure it’s fit to perform in the harshest conditions.

Enhanced Software – MyASUS

AI Noise Cancelation
Two-Way AI Noise Cancelation – Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.


System Diagnosis
 • Hardware diagnostic
 • Scenario check-up – Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.


Smart Fan Control
• Performance & Quiet modes – Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.


Other Functions
• WiFi SmartConnect – Optimizes the wireless connection
• TaskFirst – Allocate networking bandwidth to specific tasks.
• Link to MyASUS – Allows users to connect the computer to a mobile device.



Description

Specification

  • #Hide#Fully Built / Barebone: Barebone
  • Tower / Small Form Factor: Small Form Factor
  • Chassis: Asus Mini PC PN52
  • Processor: AMD Ryzen 5 5600H (3.3GHz)
  • Processor Details: 6-Core
    4.2GHz turbo
  • Chipset: Integrated
  • Graphics: Integrated Radeon Graphics
  • #Hide#Processor: AMD Ryzen 5
  • Memory: None
  • Memory Details: 2 x DDR4 SO-DIMM Slots
    3200MHz
    Max 64GB
  • Hard Drive: None
  • SSD Drive: None
  • Optical Drive: None
  • Supported Drives: 1 x 2.5″” SATA
    2 x M.2 2280* – PCIe Gen3 x4

    *M.2 slot on the bottom cover side only supports PCIe Gen3 x2 If the SATA is connected to HDD or SSD

  • Operating System: No O/S
  • Front I/O: 1 x USB 3.2 Gen1 Type C
    2 x USB 3.2 Gen1
    1 x Audio Jack (Line out/ Mic in/ Headphone out)
  • Back I/O: “1 x USB 3.2 Gen2
    2 x USB 3.2 Gen1
    1 x USB 3.2 Gen2 Type C (Support DP1.4, PD input)
    2 x HDMI 2.1
    1 x DisplayPort 1.4
    1 x 2.5G RJ45 LAN
    1 x pad-lock
    1 x DC-in”
  • LAN: 2.5GB LAN
  • Wireless: Wi-Fi 6E
  • Bluetooth: Bluetooth 5.2(2×2)
  • Sound: Two-Way AI Noise Cancellation
  • Power Unit: “19Vdc, 6.32A, 120W Power Adapter”
  • Keyboard and Mouse: No
  • Dimensions: (WxDxH) 120 x 130 x 58 mm
    0.9 Litre
  • Additional Features: See Overview
  • Accessories: Power cord
    AC Adapter
    Quick start guide and warranty card
    VESA mount
  • Package Weight: 1.9000 kg
  • Package Type: Retail
  • Warranty: 3 Years
  • #Hide#Memory: DDR4

Additional information

Weight 1.9000 kg
EAN
