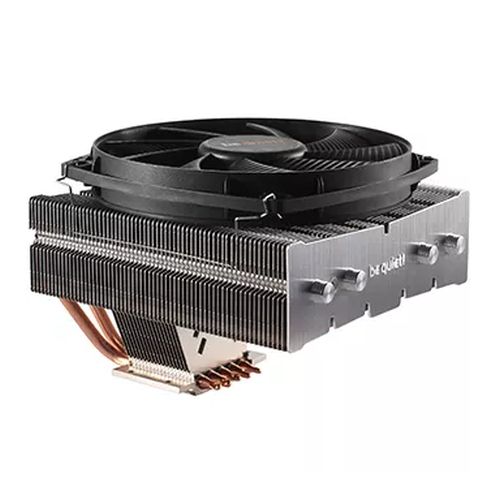

Be Quiet! BK003 Shadow Rock TF2 Heatsink & Fan, Intel & AMD Sockets, Shadow Wings Fan, 160W TDP

Add to wishlist
Compare

Be Quiet! BK003 Shadow Rock TF2 Heatsink & Fan, Intel & AMD Sockets, Shadow Wings Fan, 160W TDP

Add to wishlist
Compare

€75.90 incl. Vat

3 in stock

SKU: HEATBQSHADTF2 Category: Tag:

Description

Compact Cooling, Significant Quiet

Shadow Rock TF 2 is the perfect cooler for systems that are restricted in terms of space. It doesn’t just cool the CPU, but also other components near to the socket. Thanks to the top-flow construction and the fact that the baseplate and the cooling fins are directly connected the cooler transfers heat super-fast and generates better cooling efficiency.
If you seek the best possible mix of performance and price in the premium compact CPU cooler segment, your search is over. Shadow Rock TF 2 simply has to be your choice.



Very high cooling performance

• Impressive compact cooling capacity of 160W TDP
• Five high-performance 6mm heat pipes that carry heat straight to the optimal locations on the cooling fins




Extremely Low-Noise Operation

• A silence-optimized 135mm be quiet! fan supports the best balance between cooling performance and quietness
• The fan provides a smooth operation thanks to its nine airflow-optimized fan blades and durable rifle-bearing technology
• Even at 100% fan speed, overall noise is merely 24.4dB(A)



Highly Compatible, Highly Functional Design

• Space-saving top-flow design allows the cooler to fit into cases with limited installation space
• Small, diagonally arranged fins direct the airflow in a way that ensures perfect cooling for the CPU as well as components around the socket
• Direct connection of the baseplate and the cooling fins ensures fast heat transfer and optimum cooling efficiency
• Compatibility with Intel® and AMD™ sockets



Product conception, design and quality control in Germany

• 3-year manufacturer’s warranty
• High-quality aluminum heat pipe caps
• Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET:
• +49 (0) 40-736 76 86 – 98

Description

Specification

  • Type: CPU Air Cooler
  • AMD/Intel: Combo
  • Compatibility: Intel: LGA 1200 / 775 / 115x / 1366 / 2011(-3) Square ILM / 2066

    AMD: AM4 / AM2(+) / AM3(+) / FM1 / FM2(+)

  • TDP: 160 W
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Fan Bearing: Rifle Bearing
  • Rotation Speed: “1,400 RPM”
  • #Hide#LED Lighting: No
  • Colour: Black
  • Material: Fin material: Aluminum
    Base material: Copper
    CPU contact surface: CNC machined
  • Weight: 0.68 kg
  • Dimensions: Overall dimensions without mounting material:
    (L x W x H) 137 x 165 x 112 mm
  • Fan Dimensions: 135 x 135 x 22 mm
  • Air Flow: 67.8cfm / 113.8m3/h (@ 12V)
  • Noise level: 11.9 / 19.3 / 24.4 dB(A)
  • Power: Rated voltage: 12V
    Input current: 0.11A
    Input power: 1.32W
  • Additional Features: See Overview
  • MTBF: “80,000 hours (approx.)”
  • Package Dimensions: Supports Socket AM2
  • Package Type: Retail
  • Package Weight: 1.1700 kg
  • Warranty: 3 Years
  • #Hide#115x Sockets: Supports Sockets 115x
  • #Hide#2066 Socket: Supports Socket 2066
  • #Hide#2011(-3) Socket: Supports Socket 2011(-3)
  • #Hide#1200 Socket: Supports Socket 1200
  • #Hide#1366 Socket: Supports Socket 1366
  • #Hide#AM4 Socket: Supports Socket AM4
  • #Hide#AM3(+) Socket: Supports Socket AM3

Additional information

Weight 1.1700 kg
