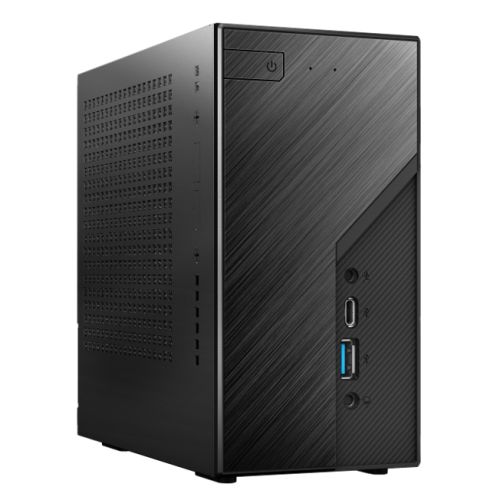

Asrock DeskMini X600 SFF Barebone PC, AMD AM5 (X600), 2x DDR5 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 2.5G LAN – No CPU, RAM, Storage or O/S
Asrock DeskMini X600 SFF Barebone PC, AMD AM5 (X600), 2x DDR5 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 2.5G LAN – No CPU, RAM, Storage or O/S
€265.32 incl. Vat
11 in stock
Description
DeskMini X600 Series
- Supports AMD Socket AM5 Ryzen 8000/7000 Series Processors, up to 65W
- Dual DDR5 6400+(OC)MHz memory, Max. 96GB
- Supports MAX Height 47mm AMD CPU Cooler
- Multi Video Outputs:HDMI, DisplayPort, D-Sub
- 2.5G LAN
- 1 x Blazing M.2 (PCIe Gen5 x4) Slot
- 1 x Hyper M.2 (PCIe Gen4 x4) Slot
- 2 x 2.5″ HDD/SSD with RAID 0/1
- 1 x M.2 Key-E for Wi-Fi
- 1 x USB 3.2 Gen1 Type-C
- 3 x USB 3.2 Gen1 Type-A
Small APU Form Factor
AMD AM5 Socket CPU
Support Phoenix and Raphael, up to 65W
Support MAX Height 47mm CPU Cooler
Powerful Processing Performance
ASRock DeskMini X600 supports the latest AMD Ryzen 8000 G-Series desktop processors. With up to 8 cores, 16 threads, these processors deliver ultimate performance for multitask computing compared with mobile processors. In addition, with AMD Ryzen 8000 G-Series desktop processors, you get the world’s fastest integrated graphics.
Insane DDR5 Memory Performance
DeskMini X600 supports Dual Channel DDR5-6400+MHz (OC) memory, up to 96GB. Thanks to high speed DDR5 memory and Radeon Graphics, DeskMini X600 provides awesome 3D performance.
Heatsink on MOSFET
ASRock DeskMini X600 features with Aluminum MOSFET Heatsink offering great heat dissipation to ensure system’s stability in daily computing.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2 1 M.2 (2280) -PCIe Gen5 x4
M2 2 M.2 (2280) -PCIe Gen4 x4
2x 2.5″ SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini X600 supports RAID 0/1 function! Build mini data center at home!
RAID 0 -offers superior I/O performance
RAID 1 -protects critical data in mirrored data
2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Triple Display
Up to three displays can be used simultaneously. With multi-screen, you can have high productivity and immersive gaming experience.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
DeskMini Addressable LED (sold separately)
Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. Attach the magnetic strip inside the chassis to create cool personalized lighting for you.
* The availability of ARGB LED Strip may vary from model or region to another.
DeskMini USB Hub (sold separately)
Attach the magnetic DeskMini USB Hub inside the chassis. Let you easy connect to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.
*The availability of DeskMini USB Hub may vary from model or region to another.
Rear Audio Cable (sold separately)
Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on.
AMD APU Coole (sold separately)
AMD CPU Cooler provides superior thermal performance.
Dimension: 77 x 68 x 45 mm
Fan Speed: 1950 ~ 3500 R.P.M
*The availability of APU Cooler may vary for different models & regions.
VESA Mount Kit (Optional)
ASRock VESA Mount Kit of DeskMini lets you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
Intel Wi-Fi Kit (sold separately)
ASRock M.2 Wi-Fi Kit includes Intel M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini.
The availability of M.2 Wi-Fi Kit may vary from model or region to another.
USB 2.0 Cable (sold separately)
Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini.
Description
Specification
- #Hide#Fully Built / Barebone: Barebone
- Tower / Small Form Factor: Small Form Factor
- Chassis: Asrock DeskMini Mini STX
- Processor: None
- Processor Details: Supports AMD Socket AM5 Ryzen 8000/7000 Series Processors
Max. TDP 65W
Support MAX Height 47mm CPU Cooler - Chipset: AMD X600
- Graphics: HDMI (4K@120Hz)
DisplayPort 1.4 (4K@120Hz)
VGA - #Hide#Processor: None
- Memory: None
- Memory Details: 2 x DDR5 SO-DIMM Slots
DDR5 6400+(OC) MHz Memory
Max. 96GB (non-ECC) - Hard Drive: None
- SSD Drive: None
- Optical Drive: None
- Supported Drives: 2 x 2.5″” SATA III (7mm/9.5mm)
1 x Blazing M.2 (2280) – PCIe 5.0 x4
1 x Hyper M.2 (2280) – PCIe 4.0 x4
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices - Operating System: No O/S
- Front I/O: 1 x MIC-In
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1 Type-A
1 x Head Phone with MIC Jack - Back I/O: 1 x DC-In Jack (Compatible with the 19V power adapter)
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port with LED - LAN: 2.5G LAN
- Wireless: “1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module – sold separately”
- Bluetooth: –
- Sound: Realtek ALC269 Audio Codec
- Expansion: “1 x USB 2.0 Header
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x Internal Speaker Header (4-Pin)
1 x Chassis Intrusion Header (2-Pin)
1 x Audio Header (4-Pin)” - Power Unit: 1 x 120W/19V adapter
- Keyboard and Mouse: No
- Dimensions: 155 x 155 x 80 mm (1.92L)
- Additional Features: See Overview
- Accessories: 2 x SATA Data with Power Cable
1 x 120W/19V adapter
1 x Screws Pack - Package Weight: 2.2000 kg
- Package Type: Retail
- Warranty: 2 Year Replacement Warranty
- #Hide#Memory: DDR5
Additional information
| Weight | 2.2000 kg |
|---|---|
| EAN |
