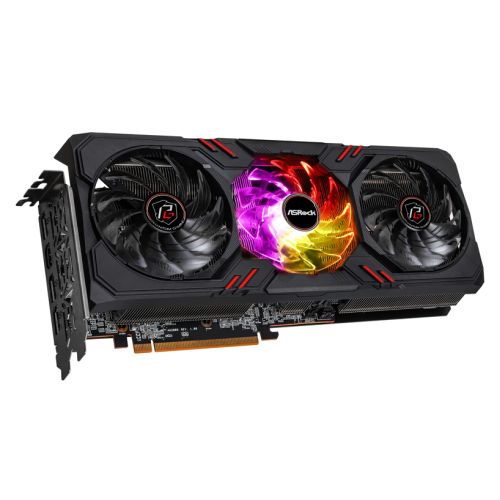

Asrock RX7600 Phantom Gaming 8GB OC, PCIe4, 8GB DDR6, HDMI, 3 DP, 2755MHz Clock, Overclocked, RGB
Asrock RX7600 Phantom Gaming 8GB OC, PCIe4, 8GB DDR6, HDMI, 3 DP, 2755MHz Clock, Overclocked, RGB
€431.73 incl. Vat
14 in stock
Description
AMD Radeon RX 7600 Phantom Gaming 8GB OC
- Boost Clock: Up to 2755 MHz / 18 Gbps
- Game Clock: 2355 MHz / 18 Gbps
- AMD Radeon™ RX 7600 GPU
- 8GB GDDR6 on 128-Bit Memory Bus
- 32 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 32MB AMD Infinity Cache™ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 4.0 Support
- 1 x 8-pin Power Connector
- 3 x DisplayPort™ 2.1*** with DSC / 1 x HDMI™ 2.1
- Polychrome SYNC
- Phantom Gaming 3X Cooling System
- Stylish Metal Backplate
- Striped Axial Fan
- Air Deflecting Fin
- Ultra-fit Heatpipe
- 0dB Silent Cooling
Phantom Gaming 3X Cooling System
For Cool And Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Air Deflecting Fin
Guide Airflow To Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-Fit Heatpipe
Consolidated To Maximize The Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-Density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Polychrome SYNC
Create Your Own Unique Colorful Light Effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro And Easy-To-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Description
Specification
- Chipset Manufacturer: AMD
- Interface: PCI Express 4.0
- Graphics Chipset: AMD RX 7600
- Memory Size: 8GB
- Memory Type: DDR6
- Memory Interface: 128-bit
- Core Clock: Boost Clock: Up to 2755 MHz
Game Clock: 2355 MHz - Memory Clock: 18 Gbps
- CUDA Cores / Stream Processors: 2048 Stream Processors
- Outputs: 1 x HDMI 2.1
3 x DisplayPort 2.1 - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- DirectX Support: DirectX 12 Ultimate
- Max Display Support: 4
- Cooling: Phantom Gaming 3X Cooling System
Stylish Metal Backplate
Air Deflecting Fin
Ultra-fit Heatpipe
Striped Axial Fan
0dB Silent Cooling - PSU Requirements: 600W or greater recommended
- Connectors Required: 1 x 8-pin PCIe power
- Software: AMD Adrenalin Edition
- Additional Features: See Overview
- Dimensions: 305 x 131 x 48 mm
- Slot Size: 2.4 Slot
- Accessories: 1 x Quick Installation Guide
- Package Type: Retail
- #Hide#Lighting Effects: Yes
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
- Package Weight: 1.8000 kg
- Warranty: 2 Year Replacement Warranty
Additional information
| Weight | 1.8000 kg |
|---|---|
| EAN |
