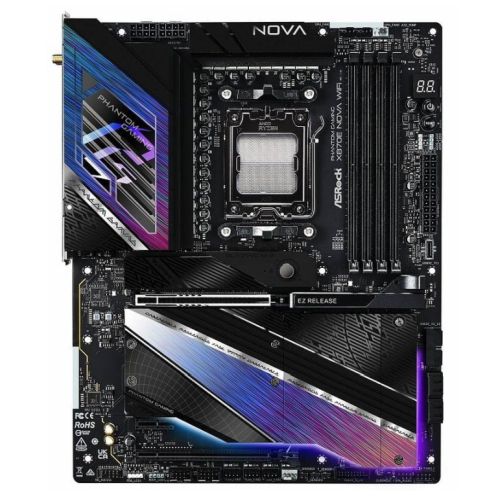

Asrock X870E NOVA WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, RGB, 5x M.2
Asrock X870E NOVA WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, RGB, 5x M.2
€498.09 incl. Vat
Out of stock
Description
Nova is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 20+2+1 Phase Power Design, 110A SPS for VCore+SOC
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 3 Hyper M.2 (PCIe Gen4x4)
- 1 M.2 (PCIe Gen3x2 & SATA3)
- 4 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 5 USB 3.2 Gen2 Type-A (Rear)
- 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- 5Gbps LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports EZ Release Design,
- Toolless Multi-Layer M.2 Heatsink
- M.2 Bottom Heatsink
Optimized VRM Design
- Exclusive 20K Cap with 1000uF Capacitance – The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF.
- 24+2+1 Power Phase Design – Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
- SPS (Smart Power Stage) – Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
- Hi-Density Power Connector – CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.
Premium PCB Solution
- Server Grade Low Loss PCB – The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
- 2oz Copper PCB – 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
- 8 Layer PCB – The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
DIY Friendly Design
- Graphics Card EZ Release – ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.
- M.2 Heatsink Toolless Design – Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
- M.2 Bottom Heatsink – The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
Enlarged M.2 Heatsink
- XXL M.2 Heatsink – The extra-large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
- Anti-Drop Screw – The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Nahimic Audio
- Audio That Matters – Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
- Enhance Communication Quality – The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Sound Tracker – The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices! – Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Wi-Fi 7
- Enhanced VR Experience – Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
- Wi-Fi 7 802.11be – Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
- Multi-link Operation(MLO) – Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
- New Wi-Fi Antenna Design – The new Wi-Fi antenna design is ideal for high-bandwidth, low-latency applications and ensures a stable connection.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
Optimized 5 Gb/s LAN
ASRock’s 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
More than USB Transfer Speed
- Lightning Gaming Ports – Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
- Ultra USB Power – Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870E
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: “DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports XMP and EXPO memory modules” - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 8200+(OC)
- Maximum Memory: 256GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs - Multi-GPU Support: Supports AMD CrossFire
- PCI/PCI Express: “1 x PCIe 5.0 x16 (PCIE1), supports x16 mode*
1 x PCIe 3.0 x1 (PCIE2), supports x1 mode*
1 x PCIe 3.0 x16 (PCIE3), supports x2 mode*
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT WiFi module* PCIE1 will run at Gen5x16 with 9000 & 7000 series CPUs, Gen4x8 with
8000 (Phoenix 1) series CPUs and Gen4x4 with 8000 (Phoenix 2) series
CPUs
* If M2_5 is occupied, PCIE3 will be disabled.” - Storage: “4 x SATA III
5 x M.2M.2_1 (2280) – PCIe 5.0 x4*
M.2_2 (2280) – PCIe 4.0 x4*
M.2_3 (2280) – PCIe 4.0 x4*
M.2_4 (2280) – PCIe 4.0 x4*
M.2_5 (2280) – SATA & PCIe 3.0 x2** M2_1 is the first priority for M.2 installation.
* M2_1 will run at Gen5x4 with 9000 and 7000 series CPUs and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series CPUs
* If M2_5 is occupied, PCIE3 will be disabled” - RAID: “Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices” - Wireless: 802.11be 2×2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO - LAN: 5GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- USB Ports Supported: Rear:
2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)
5 x USB 10Gbps Type-A (USB32_12 are Lightning Gaming Ports)
3 x USB 5Gbps Type-A (USB32_34 supports Ultra USB Power)
2 x USB 2.0Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps Type-A
4 x USB 2.0 - Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB4 Type-C (40 Gb/s)
5 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack - Internal I/O Connectors: 3 x Thermistor Cable
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
3 x Chassis Fan
1 x AIO Pump Fan
1 x Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0 - .: 2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED - Accessories: 4 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
3 x Thermistor Cables - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 3.3000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
- #Hide#RGB Lighting: Out of the box RGB lighting
Additional information
| Weight | 3.3000 kg |
|---|---|
| EAN |
