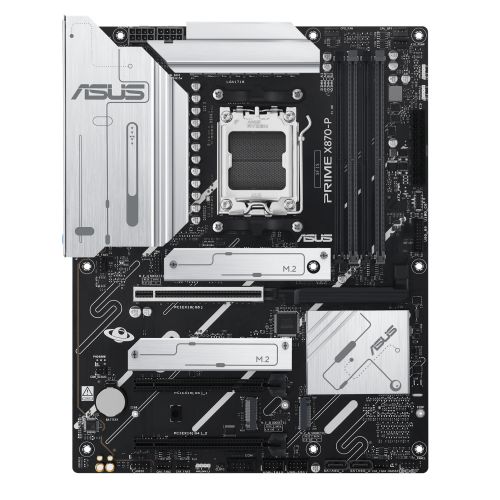

Asus PRIME X870-P, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, 2.5G LAN, 4x M.2

Add to wishlist
Compare

Asus PRIME X870-P, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, 2.5G LAN, 4x M.2

Add to wishlist
Compare

€358.36 incl. Vat

38 in stock

SKU: AUMBX870PPR Categories: , , Tag:

Description




ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.


Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.


  • Advanced AI PC-ready
  • 14+2+1 DrMOS
  • PCIe 5.0 x16 slot with full support for next-gen graphics card
  • DDR5 slots
  • Four M.2 slots
  • Realtek 2.5 Gb Ethernet
  • USB 40Gbps
  • HDMI
  • USB 10Gbps Type-A
  • Front USB 10 Gbps Type-C connector
  • SATA 6Gbps ports
  • USB 5 Gbps header
  • Aura Sync RGB lighting



Robust power design

Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
  • Eight-layer PCB design – Enhanced stability and overclocking.
  • ProCool connectors – Proprietary 8 + 8 pin connectors improve PSU connection.
  • Power Saving – Optimize power with CPU, lighting, and fan settings.
  • Digi+ VRM control – Real-time voltage control.

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME X870-P offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

Four M.2 slots (up to 128 Gbps)

PRIME X870-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by design


The PRIME X870-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
  • ASUS Fan Xpert 4 – ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.
  • Cooler compatibility – ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
  • AI Cooling II – Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Empowering connections

The PRIME X870-P motherboard offers a versatile range of connectivity, including support for PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.
  • 2.5Gb Ethernet
  • PCIe 5.0
  • USB 40Gbps
  • PCIe 5.0 slot
  • USB 10Gbps

Personalization

The PRIME X870-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS – The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS GlideX – Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
  • ASUS DriverHub – Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate – Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync – Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable Gen 2 RGB headers – Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.





DIY Friendly
The PRIME X870-P motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
  • PCIe Slot Q-Release – A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.
  • M.2 Q-Latch – The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
  • Q-LED Core – The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
  • Pre-Mounted I/O Shield – Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
  • BIOS FlashBack – BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
  • SafeSlot – PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.




Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD X870
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: “DDR5 (Dual Channel)
    ECC and Non-ECC, Un-buffered Memory
    Supports AMD EXPO
    ASUS Enhanced Memory Profile”
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    2 x USB4 (40Gbps) support USB Type-C display outputs
  • PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
    1 x PCIe 5.0 x16 (supports x16 mode)

    Ryzen 8000 CPUs:
    1 x PCIe 4.0 x16 (supports x8/x4 mode)

    AMD X870 Chipset:
    2 x PCIe 4.0 x16 (supports x1 mode)

  • Storage: 2 x SATA III
    4 x M.2

    Ryzen 9000 & 7000 CPUs:
    M.2_1 (2280) – PCIe 5.0 x4

    Ryzen 8000 CPUs:
    M.2_1 (2280) – PCIe 4.0 x4

    X870E Chipset:
    M.2_2 (2242/2260/2280) – PCIe 4.0 x4
    M.2_3 (2280 ) – PCIe 4.0 x4
    M.2_4 (2280 ) – PCIe 3.0 x2

  • RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
  • Wireless: –
  • LAN: 2.5GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    2 x USB4 (40Gbps) Type-C
    1 x USB 10Gbps Type-A
    3 x USB 5Gbps Type-A
    4 x USB 2.0

    Front:
    1 x USB 10Gbps Type-C
    2 x USB 5Gbps
    4 x USB 2.0

  • Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
    1 x USB 10Gbps Type-A
    3 x USB 5Gbps Type-A
    4 x USB 2.0
    1 x HDMI
    1 x Realtek 2.5Gb Ethernet
    3 x Audio jacks
    1 x BIOS FlashBack button
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    4 x 4-pin Chassis Fan
    1 x 24-pin Main
    2 x 8-pin +12V CPU
    4 x M.2 (Key M)
    2 x SATA 6Gb/s
    1 x USB 10Gbps Type-C
    1 x USB 5Gbps
    2 x USB 2.0
  • .: 3 x Addressable Gen 2
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x SPI TPM (14-1 pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x M.2 rubber package
    2 x Screw packages for M.2 SSD
    1 x Quick start guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.4860 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN

Additional information

Weight 1.4860 kg
