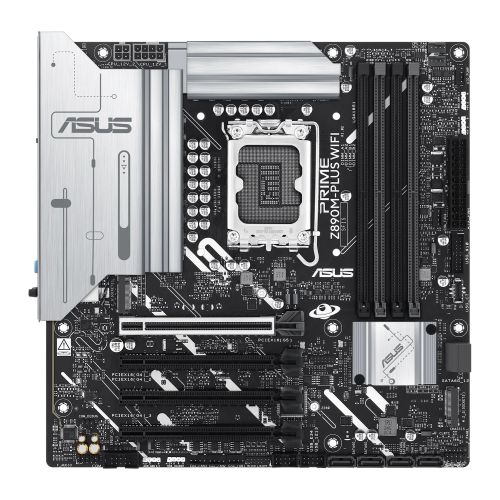

Asus PRIME Z890M-PLUS WIFI, Intel Z890, 1851, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, 3x M.2

Add to wishlist
Compare

Asus PRIME Z890M-PLUS WIFI, Intel Z890, 1851, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, 3x M.2

Add to wishlist
Compare

€386.45 incl. Vat

19 in stock

SKU: AUMBZ890MPLPRWI Categories: , , Tag:

Description

Z890M-PLUS WIFI

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  • Intel® Z890 (LGA 1851) mATX motherboard
  • Advanced AI PC-ready
  • 10+1+2+1 80A DrMOS power stages
  • DDR5 slots
  • PCIe® 5.0 x16 SafeSlot
  • Full support for next-gen graphics card
  • DisplayPort
  • HDMI
  • USB 20Gbps port supports DisplayPort video output
  • Front panel USB 5Gbps Type-C® port
  • 3 x M.2 slots
  • Wi-Fi 7 with Q-Antenna
  • Realtek 2.5 Gb Ethernet
  • Pre-mounted I/O shield
  • BIOS FlashBack
  • Aura Sync






AI Solutions
  • AI Advisor – ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
  • AI Networking II – Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
  • AI Cooling II – Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.




NPU Boost

The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows – and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.





Robust power design

Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME Z890M-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 10(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.





AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.





DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.





Three M.2 slots (up to 128Gbps)
The PRIME Z890M-PLUS WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.





Cooler by design
The PRIME Z890M-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.





ASUS Fan Xpert 4
ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.




Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.





Empowering connections
The PRIME Z890M-PLUS WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.





WiFi 7
The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.





USB 20Gbps port with DP Alt Mode
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C port with transmission speeds of up to 20Gbps. The port can also support external 4K DisplayPort video output.





PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.





Personalization
The PRIME Z890M-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.





UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.





TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.





ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.






ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.





Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.





Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.





DIY friendly
The PRIME Z890M-PLUS WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.





Pre-mounted I/O shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.




BIOS FlashBack

BIOS FlashBack simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button – no CPU or memory needed.





SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.





Addressable Gen2 RGB headers

Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.




Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1851
  • Chipset: Intel Z890
  • #Hide#DDR Type: DDR5
  • CPU Support: Support Intel Core Ultra Processors (Series 2)
  • RAM Technology: “DDR5 (Dual Channel)
    Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
    Supports Intel XMP
    Supports DIMM FIT
    ASUS Enhanced Memory Profile III

    *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function”

  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 7600+MT/s (OC)
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
    1 x USB 20Gbps Type-C supports DisplayPort video output
  • PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
    1 x PCIe 5.0 x16

    Intel Z890 Chipset:
    1 x PCIe 4.0 x16 (supports x4 mode)
    2 x PCIe 4.0 x16 (support x1 mode)

  • Storage: 6 x SATA III
    3 x M.2

    Intel Core Ultra CPUs (Series 2):
    M.2_1 (2280) – PCIe 5.0 x4

    Intel Z890 Chipset:
    M.2_2 (2280) – PCIe 4.0 x4
    M.2_3 (2280) – PCIe 4.0 x4

  • RAID: “Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5”
  • Wireless: “Wi-Fi 7
    2×2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band
    Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
    Bluetooth v5.4″
  • LAN: 2.5GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    1 x USB 20Gbps Type-C with DP Alt mode
    1 x USB 10Gbps Type-A
    4 x USB 5Gbps Type-A
    2 x USB 2.0

    Front:
    1 x USB 5Gbps Type-C
    2 x USB 5Gbps
    4 x USB 2.0

  • Back Panel I/O Ports: 1 x USB 20Gbps Type-C with DP Alt mode
    1 x USB 10Gbps Type-A
    4 x USB 5Gbps Type-A
    2 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x Wi-Fi module
    1 x Realtek 2.5Gb Ethernet
    3 x Audio jacks
    1 x BIOS FlashBack button
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    4 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V CPU
    1 x 4-pin +12V CPU
    3 x M.2 (Key M)
    6 x SATA 6Gb/s
    1 x USB 5Gbps Type-C
    1 x USB 5Gbps
  • .: 2 x USB 2.0
    3 x Addressable Gen2
    1 x Aura RGB
    1 x Clear CMOS
    1 x Chassis Intrusion
    1 x COM Port header
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin Front System Panel
    1 x Thunderbolt (USB4)
  • Accessories: 2 x SATA 6Gb/s cables
    1 x ASUS WiFi Q-Antenna
    3 x Screw packages for M.2 SSD
    1 x Quick start guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)

Additional information

Weight 0.0000 kg
EAN
