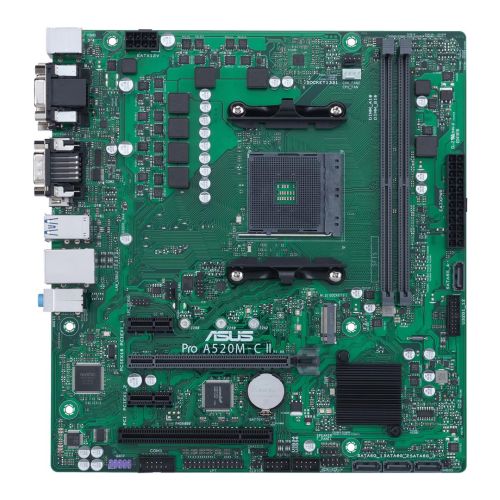

Asus PRO A520M-C II/CSM – Corporate Stable Model, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, DP, 1x M.2
Asus PRO A520M-C II/CSM – Corporate Stable Model, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, DP, 1x M.2
€112.37 incl. Vat
19 in stock
Description
Micro-ATX A520 business motherboard with enhanced security, reliability and manageability
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- ASUS LPC debug header for more efficient troubleshooting
- Supports SMBUS header that connects to a DASH LAN for remote IT management
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Event log for capturing and managing detailed system information
- Commercial BIOS kit to make customization faster and more efficient
- ASUS Control Center Express (ACCE) to make IT endpoint management easier
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Control Center Express
** Click here for full product details **
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AMD AM4
- Chipset: AMD A520
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 4600(O.C)
- Maximum Memory: 64GB
- Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types - Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI
1 x DisplayPoprt - Multi-GPU Support: –
- PCI/PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
1 x PCI - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) – SATA & PCIe 3.0 x4 - RAID: “RAID 0, 1, 10”
- Wireless: –
- LAN: GB LAN
- Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0Front:
2 x USB 3.2 Gen1
4 x USB 2.0 - Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
2 x USB 2.0 ports Type-A
1 x DisplayPort
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard
1 x PS/2 Mouse - Internal I/O Connectors: 1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main Power
1 x 8-pin +12V Power
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio - .: 1 x LPC debug
1 x LPT
1 x SMBUS
1 x Speaker
1 x 10-1 pin System Panel - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.1000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
Additional information
| Weight | 1.1000 kg |
|---|---|
| EAN |
