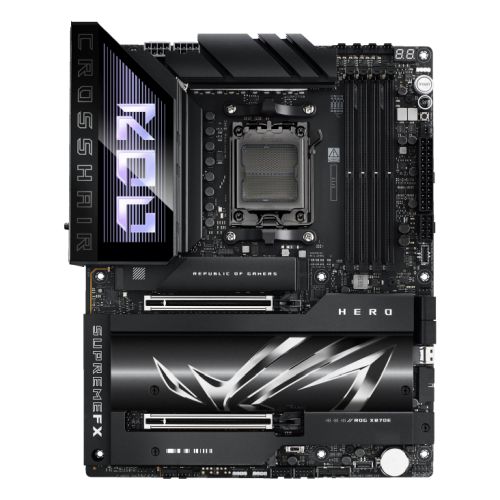

Asus ROG CROSSHAIR X870E HERO, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, PD 60W, RGB, 5x M.2
Asus ROG CROSSHAIR X870E HERO, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, PD 60W, RGB, 5x M.2
€894.85 incl. Vat
72 in stock
Description
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors.
Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
- Advanced AI PC-ready
- 18+2+2 power stages
- Dynamic OC Switcher
- Core Flex
- DDR5 slots with AEMP & NitroPath DRAM Technology
- Wi-Fi 7 with ASUS WiFi Q-Antenna
- 5 M.2 slots onboard
- 3 PCIe 5.0 NVMe SSD slots onboard
- SlimSAS connector
- PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim and full support for next-gen graphics cards
- 2 USB4 ports
- 2 USB 20Gbps Type-C front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher)
- AI Overclocking
- AI Cooling II
- AI Networking II
- Polymo Lighting II
Asus AI Intelligence
- AI Networking II – AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
- AI Overclocking – Tuning is now faster and smarter than ever before.
- AI Cooling II – Balance the thermals and acoustics of any build with a single click.
Overclocking
- Dynamic OC Switcher – Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
- Core Flex – Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.
- Asynchronous Clock – For next-level frequency flexibility, the ROG Crosshair X870E Hero features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
- PBO Enhancement – AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
Memory
- DDR5 Domination – Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 8 GT/s mark on the ROG Crosshair X870E Hero.
- NitroPath DRAM Technology – Frequency up to 400 MT/s higher. Slot retention force enhanced by 57%
- AEMP – ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
Thermal Management
An extensive array of headers line the ROG Crosshair X870E Hero for precise cooling control and monitoring.
- Multiple temperature sources – Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
- 4-pin fan headers – In addition to the pair of CPU fan headers, the ROG Crosshair X870E Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.
- AIO pump header – An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setups.
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.
Five onboard M.2 Slots
The ROG Crosshair X870E Hero features five onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.
Expansion Slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the PCIe Slot Q-Release Slim.
WiFi 7
Next-gen WiFi 7 chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Asus WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Ethernet
2.5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Advanced mode
- My Favorites – Quickly locate tuning options and add preferred tools to your favorites list.
- EZ Flash 3 – Flash the latest BIOS via the internet from within the BIOS.
- S.M.A.R.T. – Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
- GPU POST – Automatically detect selected ASUS graphics cards to view detailed information.
- Secure Erase – Restore your SSDs and NVMe storage to factory settings.
- Last Modified Log – Track the last change and save preferred profiles to a USB drive.
- SATA Port Renaming – Rename SATA ports for easy identification.
- ASUS User Profile – Port configuration settings between different BIOS versions or share them with friends.
- Q-Fan Control – Configure the fan’s operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
- Aura On/Off mode (Stealth) – Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
EZ PC DIY
- PCIE SLOT Q-Release Slim – With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
- M.2 Q-Release
- The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
- M.2 Q-Slide – This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
- New M.2 Q-Latch – The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
- Q-Antenna – With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
- Q-LED – The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components CPU, RAM, graphics card, storage devices are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed–even before attempting to boot a newly built PC.
- Clear CMOS & BIOS Flashback – The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Software
ASUS DriverHub – ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
Dolby ATMOS – ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It’s compatible with Windows, macOS, Android, and iOS.
ASUS GLIDEX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It’s compatible with Windows, macOS, Android, and iOS.
HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
AIDA64 EXTREME
The ROG Crosshair X870E Hero includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Glow your gaming world with aura sync
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870E
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: “DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
NitroPath DRAM Technology
ASUS Enhanced Memory Profile” - RAM Slots: 4 x DIMM
- RAM Speeds: 8200+MT/s(OC) with Ryzen 9000 Series CPUs
8600+MT/s(OC) with Ryzen 8000 Series CPUs
8000+MT/s(OC) with Ryzen 7000 Series CPUs - Maximum Memory: 192GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs - PCI/PCI Express: “9000 & 7000 CPUs:
2 x PCIe 5.0 x16 (x16 or x8/x8* or x8/x4/x4 modes**)
* When you use both PCIEX16_1 & PCIEX16_2, PCIEX16_1 & PCIEX16_2 will run x8.
** When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.8700 & 8600 & 8400 CPUs:
2 x PCIe 4.0 x16 (PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)8500 & 8300:
2 x PCIe 4.0 x16 (PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)” - Storage: 4 x SATA III
1 x SlimSAS (supports PCIe 4.0 x4 mode)
5 x M.2Ryzen 9000 & 8000 & 7000 CPUs:
M.2_1 (2242/2260/2280) – PCIe 5.0 x4
M.2_2 (2242/2260/2280) – PCIe 5.0 x4
M.2_3 (2242/2260/2280) – PCIe 5.0 x4Ryzen 8000 CPUs:
M.2_1 (2242/2260/2280) – PCIe 4.0 x4
M.2_2 (2242/2260/2280) – not supported
M.2_3 (2242/2260/2280) – not supportedX870E Chipset:
M.2_4 (2242/2260/2280) – PCIe 4.0 x4
M.2_5 (2280) – PCIe 4.0 x4 - RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
- Wireless: “Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4″ - LAN: 5GB LAN & 2.5GB LAN
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- USB Ports Supported: Rear:
2 x USB4 (40Gbps) Type-C
8 x USB 10Gbps (6 Type-A + 2 Type-C)Front:
1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0 - Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
8 x USB 10Gbps (6 Type-A + 2 Type-C)
1 x HDMI
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V CPU
1 x 8-pin PCIe
5 x M.2 (Key M)
1 x SlimSAS
4 x SATA 6Gb/s
2 x USB 20Gbps Type-C - .: 2 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel
1 x Thermal Sensor - .: 1 x LN2 Mode jumper
- Accessories: 1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 4.3800 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
- #Hide#RGB Lighting: Out of the box RGB lighting
Additional information
| Weight | 4.3800 kg |
|---|---|
| EAN |
