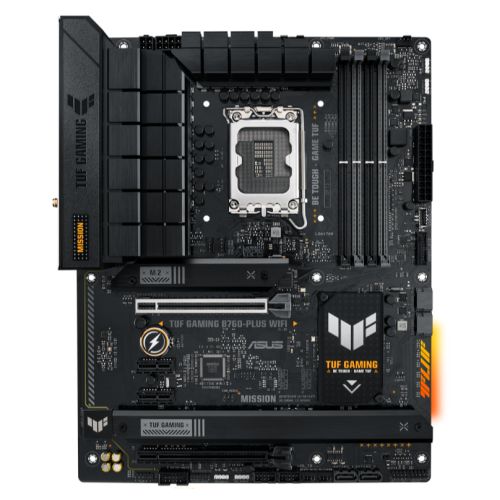

Asus TUF GAMING B760-PLUS WIFI, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2, RGB

Description

TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

• Power stages – 12+1 DrMOS power stages with enlarged VRM heatsinks
• PCIe – PCIe® 5.0 for graphics cards
• Memory module support – DDR5 memory module support
• Connectivity – USB 3.2 Gen 2×2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
• Ethernet – 2.5 Gb Ethernet
• WiFi 6
• Two-Way AI Noise Cancelation

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5, Dual Channel”
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7200(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 3.0 x16 (supports x4 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
  1 x M.2 (2242/2260/2280/22110) – PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6
  2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen2 Type-A
  3 x USB 3.2 Gen1 Type-A
  1 x USB 2.0

  Front:
  1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen1
  4 x USB 2.0

• Front Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen2 Type-A
  3 x USB 3.2 Gen1 Type-A
  1 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x 20-3 pin System Panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antenna
  1 x TUF Gaming sticker
  2 x M.2 Rubber Packages
  1 x Screw package for M.2 SSD
  1 x TUF Certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.7800 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
