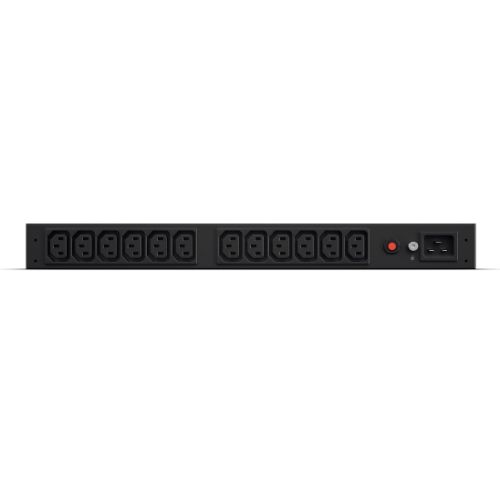

CyberPower PDU20BHVIEC12R Basic Single Phase Power Distribution Unit

CyberPower PDU20BHVIEC12R provides output from a UPS unit, generator or utility power to enable multiple connected devices in data center environments. Designed with rugged, industrial-grade metal housing and an ultra-long input power cord, the product supports installation in demanding environments or where only distant power sources are available.

  • Overload Protection
  • Adjustable Mounting Brackets
  • Industrial-grade Metal Housing
  • Cord Retention Tray
  • Type  Basic  Voltage: 200 ~ 240 Vac
  • Rated Current: 16A
  • Outlet Type:  IEC C13 x 12
  • Installed Rack Height: 1U




Description

Specification

  • Type: Basic
  • Phase: Single Phase
  • Input: Nominal Input Voltage: 200 ~ 240 Vac
    Input Frequency: 50 / 60 Hz
    Maximum Input Current: 16A
    Input Connector Type: IEC C20 x 1
  • Output: Output Voltage (V): Depends on Input
    Overload Protection: Circuit Breaker
    Over Current Protection (Each Bank): 16A
    Outlet(s) – Total: 12
    Outlet(s) – Rear: 12
    Outlet Type: IEC C13 x 12
  • Form Factor: 1U Vertical Rackmount
    1U Horizontal Rackmount
    Undercounter Installation Supported
  • Enclosure Construction: Steel
  • Cord Retention Tray: Yes
  • External Site Ground Pin: Yes
  • Adjustable Mounting Brackets: “2 Set (L-short, L-long)”
  • Weight/Dimensions : 0.9 kg
    (WxHxD) 445 x 44.5 x 38.1 mm
  • Environmental: “Operating Temperature: 32 ~ 95°F
    Operating Temperature: 0 ~ 35°C
    Operating Relative Humidity (Non-condensing): 0 ~ 95%
    Operating Elevation: 0-9,843 feet (0-3,000 meters)
    Storage Temperature: 5 ~ 113°F
    Storage Temperature: -15 ~ 45°C
    Storage Relative Humidity (Non-condensing): 0 ~ 95%
    Storage Elevation: 0-49,213 feet (0-15,000 meters)”
  • Certifications: “CE, UL60950
    RoHS”
  • Additional Features: See Overview
  • Package Contents: PDU20BHVIEC12R
    Users Manual
    Product Registration Card
    Cord Retention Tray
    Mounting Brackets
    Cable Ties
    Screw Kit
  • Package Weight: 2.3700 kg
  • Warranty: 2 Years
