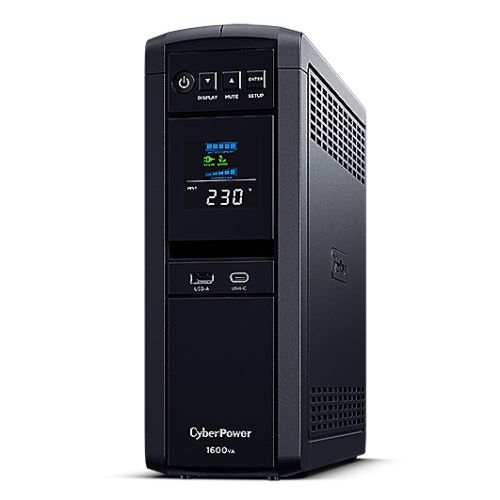

CyberPower CP1600EPFCLCD-UK with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies.
Â
Designed with GreenPower UPSâ„¢ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.
Â
The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.
Â
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- LED Status Indicator
- PowerPanel Management Software
- USB Charging Port(s)
- Tower Form Factor
- Energy Saving Technology
- Pure Sine Wave Output
- Color LCD Panel
- SNMP/HTTP Remote Management Capability (Optional)
- Surge and Spike Protection
- High-speed Ethernet Data Transmission
Â
Description
Specification
- Type: External UPS
- Maximum Capacity: 1600VA / 1000W
- Battery Type: Sealed Lead-acid
- Typical Protection: “Surge Suppression: 405 Joules
Network Protection RJ45: 1-in, 1-out” - Inversion: Pure Sine Wave
- Transfer Time: 8 ms (at normal sensitivity)
- Battery Protection: Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting - Input Voltage: “Nominal Input Voltage: 220, 230, 240 Vac
Input Voltage Range: 169 ~ 271 Vac” - Output Voltage: 230 ± 10% Vac
- Recharge Time: 8 Hours (recover to 90% after full load discharge)
- Runtime: at Half Load: 9.7 minutes
at Full Load: 2.6 minutes - Interfaces: “4 x IEC C13 Socket
2 x UK Mains Socket
RJ45: 1-in, 1-out
1 x USB-A charging (5 V/ 2.4 A Max)
1 x USB-C charging (5 V/ 2.5 A Max, 9 V/ 2 A Max, 15 V/ 2 A Max)
Serial Port“
- Visual Indicators: “Colour LCD
Tiltable LCD Panel: 22°
Information: Operation, Power, Battery, Load, Fault & Warning, Event & Log
Alarm Setting, Input & Output, Battery Setting, Event & Log
LED Indicators: Power On” - Audible Indicators: “Alarms: Battery Mode, Low Battery, Overload, UPS Fault”
- Environment: “Operating Temperature: 32 ~ 104 °F
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 95 %
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-4,921 feet (0-1,500 meters)
Online Thermal Dissipation: 24 BTU/hr” - Dimensions: (WxHxD) 100 x 280 x 355 mm
- Weight: 11 kg
- Software: PowerPanel Business (Recommended)
- Additional Features: See Overview
- Accessories: Power Cord
USB Cable
Users Manual - Package Type: Retail
- Package Weight: 11.0000 kg
- Warranty: 2 Years – direct with CyberPower
