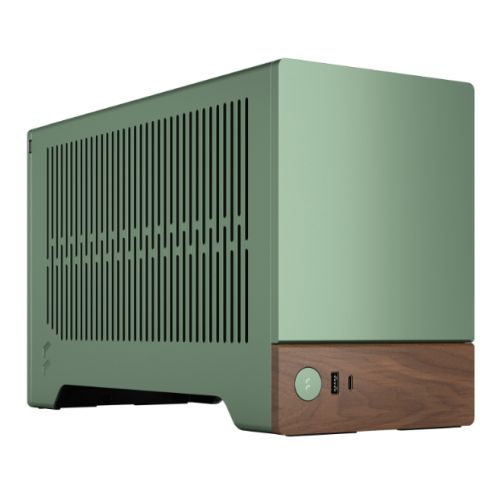

Fractal Design Terra Jade SFF PC Case, Mini ITX, Walnut Front, Anodized Aluminium Exterior, 322mm GPU Support, Requires SFX/SFX-L PSU, USB-C

Add to wishlist
Compare

Fractal Design Terra Jade SFF PC Case, Mini ITX, Walnut Front, Anodized Aluminium Exterior, 322mm GPU Support, Requires SFX/SFX-L PSU, USB-C

Add to wishlist
Compare

€261.77 incl. Vat

19 in stock

SKU: CAM-FRTER-JA Categories: , , Tag:

Description

Despite its modest 10.4L, the Terra can easily accommodate a fullsize current GPU and SFX-L PSU thanks to a sliding wall design that adapts to your motherboard and GPU needs

This is a case that fuses Scandinavian design elements and a remarkably flexible interior to form a uniquely versatile SFF case and lend an air of luxury to any build.
  • Sandwich type SFF-case
  • Motherboard bracket can be slid sideways to make room where it is needed the most
  • Anodized aluminum exterior
  • Front and back panel made by 8 mm CNCd anodized aluminum
  • Front panel made of walnut
  • PCIe 4.0 Riser cable included
  • Removable top panel and removable falcon hinged side panels for easy access
  • Only 10,4L (non-protruding parts) yet accommodates up to a 322 mm long GPU





Elegantly crafted
  • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
  • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
  • Make the most of natural airflow through the ventilated top, side and bottom panels

Engineered for SFF gaming
  • Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
  • Get a head start on your build with the included PCIe 4.0 riser cable
  • Store up to two SSDs in the dedicated 2.5” drive mounts

Easily accessible
Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components

Adjustable motherboard plate
Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other
Front-facing I/O
The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps

Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.



Highly transportable
Features the ability to lock the top and side panels for safer transportation of your build





Description

Specification

  • Form Factor: Mini ITX
  • #Hide#Small Form Factor: Yes (SFF)
  • Power Supply Wattage: No PSU
  • Motherboard Support: Mini ITX
  • #Hide#Window(s): No
  • Connectors / Controls: 1 x USB 3.1 Gen2 Type-C
    1 x USB 3.0
    Power Button
  • Drive Bays: 2 x Dedicated 2.5″””” Drive Mounts
  • Expansion Slots: 3 Expansion Slots
  • Cooling System: Included
    None

    Fan Mounts
    Bottom: 1 x 120 mm

  • .:
    Radiator Support:
    Side: 1 x 120 mm (121mm wide if 200mm GPU and no SSDs)
  • Material: Anodized aluminium exterior
    Front and back: 8mm CNCd anodized aluminium
    Front panel: walnut
  • Compatibility: GPU max length: 322 mm

    Configured for Max GPU:
    GPU max width 1: 72 mm (GPU height lower than 131mm)
    GPU max width 2: 62 mm (GPU height 131-145mm)
    GPU max height: 145 mm
    CPU cooler max height: 48 mm

    Configured for Max CPU-Cooler:
    GPU max width 1: 43 mm (GPU height lower than 131mm)
    GPU max width 2: 33 mm (GPU height 131-145mm)
    GPU max height: 131 mm
    CPU cooler max height: 77 mm

    PSU:
    SFX & SFX-L only

  • Weight/Dimensions: 3.1 kg
    (LxWxH) 343 x 153 x 218 mm
    w/o feet/protrusions/screws: 343 x 153 x 198 mm
    10.4 litres (non-protruding parts)
  • Additional Features: See Overview

    Click here for Installation Manual

  • Accessories: Accessory box
    Manual
  • Package Weight: 4.2000 kg
  • Warranty: 2 Years

Additional information

Weight 4.2000 kg
