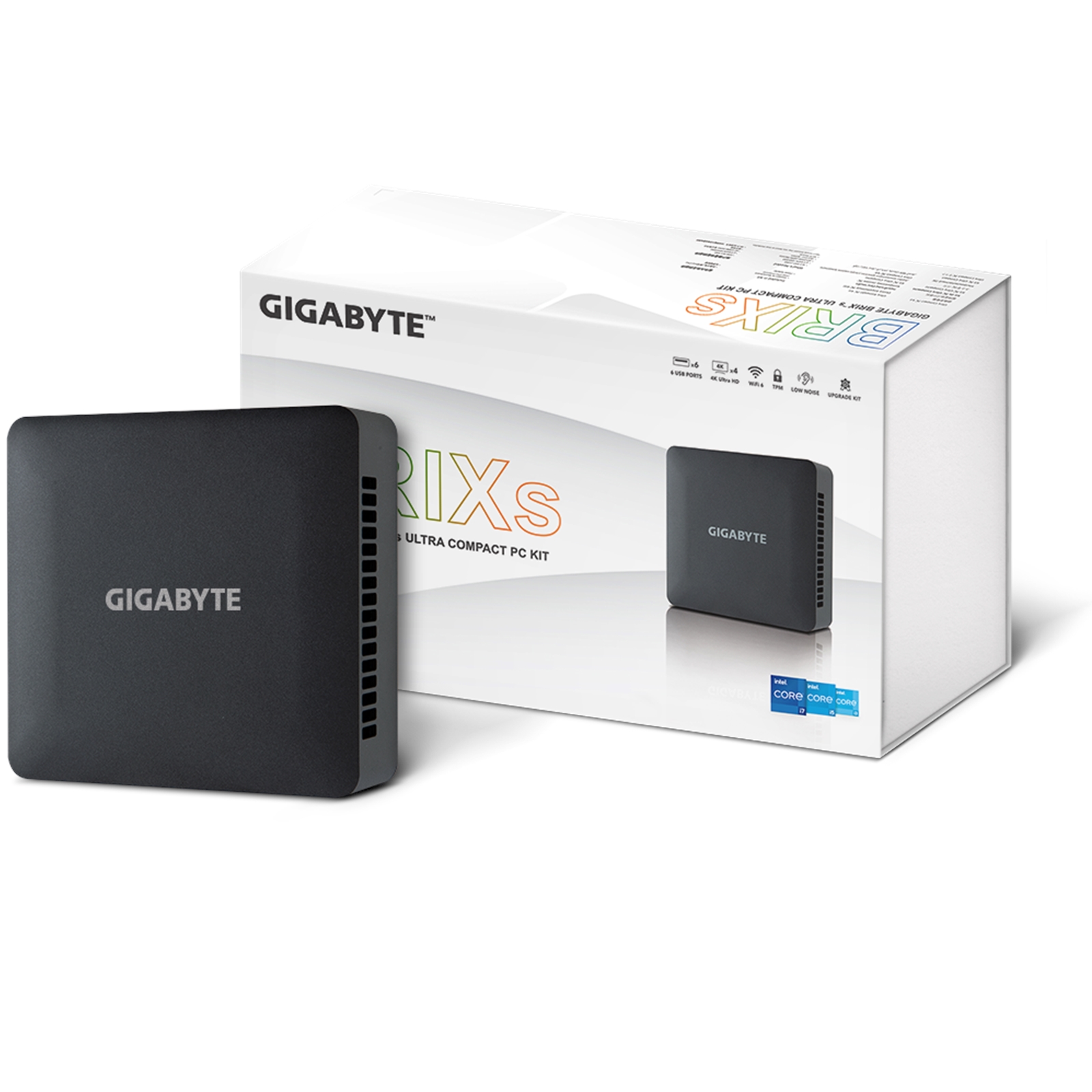

Gigabyte BRIX (GB-BRI7H-1355) Barebone Kit, Intel Core i7-1355U 5.0GHz 10 Core CPU, 1 x DDR4 SO-DIMM Slot, 2 x M.2 Slots, 1x 2.5″ HDD/SSD Slot, Wifi AX & Bluetooth 5.2

Description

Upgrade to the future
Minimalism meets power
The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.
By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.

GIGABYTE BRIX With Intel Core Processors – Uncompromised Performance
With 13th Gen Intel Core Processors, Intel advanced its hybrid design and made it even better than our previous product with 10th Gen Intel Processors. Faster Performance-cores means getting dedicated tasks done faster and easier. More Efficiency-cores means better multi-tasking.Great on-board graphics and best-in-class connectivity means a fully immersive experience and ultra-responsive wired and wireless connections.

Increasing performance gets more done
With the latest 13th Gen Intel Core Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections.

4 X 4K Outputs
The GIGABYTE BRIX with 13th Gen Intel Core Mobile Processors supports up to 4 independent displays with 4K resolution and HDR 10 support, through its HDMI and mini Display ports. This gives users the flexibility to configure their environment without any limitations.

DDR4 3200MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at 3200 MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and a high bandwidth interface. DDR4’s primary advantages over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with increased data rate transfer speeds.

VESA Support
With a VESA-ready design, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV. This offers a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

Dimension
124 x 120 x 49.7 mm

CPU
13th Gen Intel Core i7-1355U Processor
10 Cores (2P+8E), 12 Threads, 12MB Cache
Frequency up to 5.0GHz(P Core Turbo), 15W

Memory
2 x SO-DIMM DDR4 slot
3200MHz
Max. 64GB

LAN
2.5 GbE LAN (Intel i226V)

Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics
Intel Iris Xe Graphics, 96EU, 1.3GHz

Audio
Realtek ALC269 HD audio

Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840×2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840×2160@60Hz

Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
1 x 2.5 slot for HDD/SSD (9.0mm thick; SATA3)

Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button

Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In

Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS
Win11 64 bit
Win10 64 bit

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
