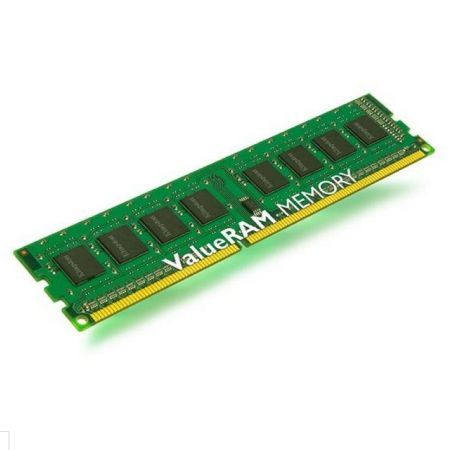

Kingston 8GB, DDR3, 1600MHz (PC3-12800), CL11, DIMM Memory
Kingston 8GB, DDR3, 1600MHz (PC3-12800), CL11, DIMM Memory
€49.19 incl. Vat
6 in stock
Description
8GB 2Rx8 1G x 64-Bit PC3-12800 CL11 240-Pin DIMM
ValueRAM’s 1G x 64-bit (8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold
contact fingers.
Features
• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component
Description
Specification
- Series: Kingston ValueRAM
- DDR Type: DDR3
- Size: 1 x 8GB
- #Hide#Individual Module Size: 8GB
- #Hide#Total Capacity: 8GB Total
- Speed: 1600 MHz
- Compliance: PC3-12800
- Pins: 240-pin
- CAS Latency: CL11
- Data Integrity Check: Non-ECC
- Voltage: 1.5V
- Heatsink: No
- #Hide#LED Lighting: No
- Additional Information: Unbuffered
- Package Type: Blister Pack
- Package Weight: 0.0280 kg
- Warranty: Lifetime
Additional information
| Weight | 0.0280 kg |
|---|---|
| EAN |
