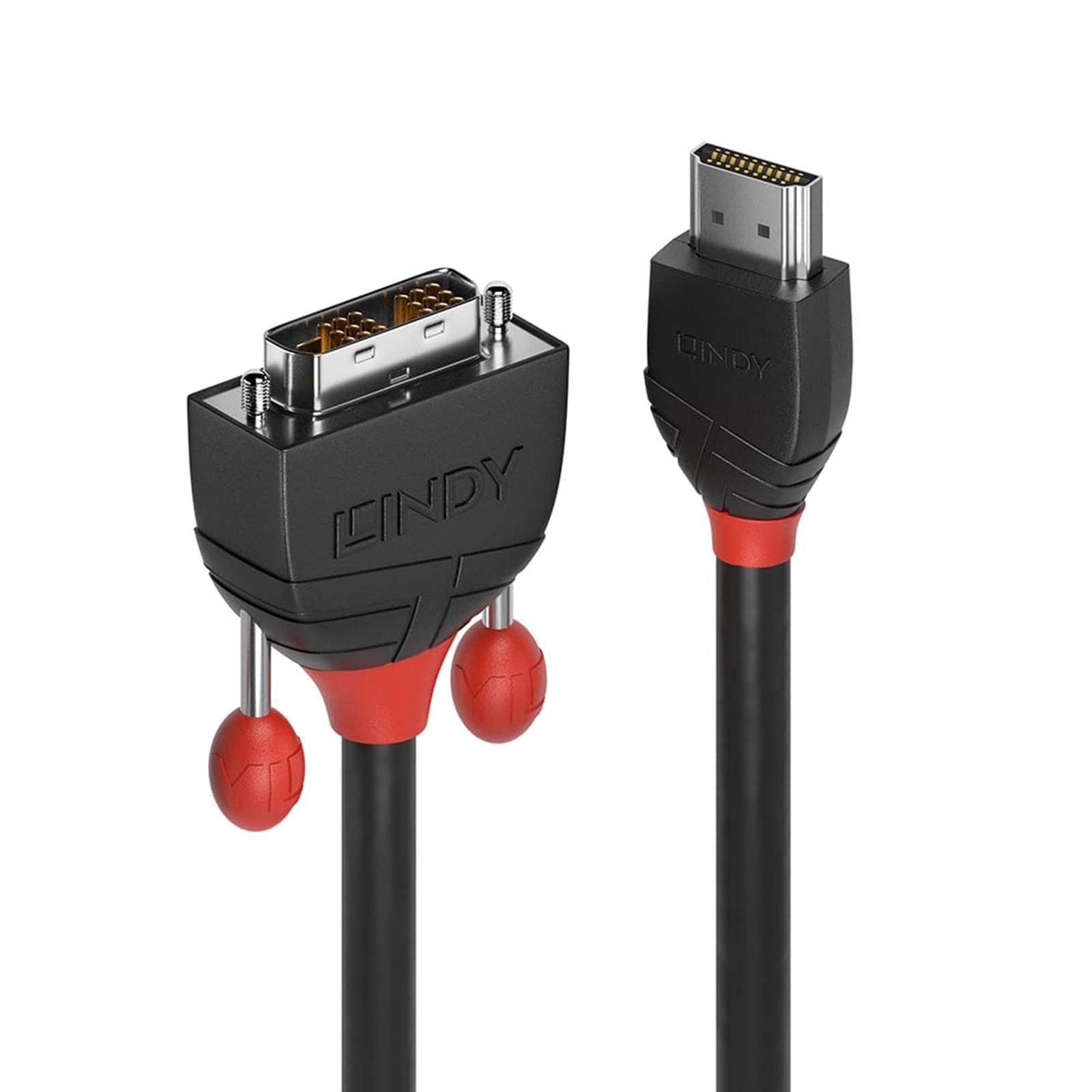

Lindy 36272 2m HDMI (M) To DVI-D (M) Black Line 1920×1200@60Hz Max Resolution – Black

Description

‘- Entry level HDMI Male to DVI-D Male cable for home and small office applications
– Supports DVI resolutions up to 1920×1200@60Hz and HDTV resolutions up to 1080p
– Robust PVC housing, nickel connectors, 24K gold plated contacts
– Tripled shielded cable, corrosion resistant tinned copper 30AWG conductors
– 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Black Line HDMI to DVI-D cables are fully featured, entry level connection solutions, perfect for connecting PCs to monitors or projectors.

Black Line HDMI to DVI-D cables feature triple shielded construction with 30AWG tinned copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.

Black Line HDMI to DVI-D cables support resolutions up to 1920×1200@60Hz including HDTV resolutions up to 1080p.

Black Line HDMI to DVI-D cables are available in lengths of 0.5m to 10m.

Connectors

Connector A: HDMI Type A Male
Connector B: DVI-D Male (Single Link)
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: 24K Gold 1µm
Dimensions, HDMI Connector (approx.) WxDxH: 21.4×34.2×12.7mm (0.84×1.35×0.5in)
Dimensions, DVI Connector (approx.) WxDxH: 36.8×44.5×12.5mm (1.45×1.75×0.49in)

Cable Construction

Length: 2m (6.56ft)
Standard: DVI-D Single Link
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 30AWG
Shielding: Aluminium/Magnesium Braid 85%

Specifications

Supported Bandwidth: 4.95Gbps
Maximum Resolution: 1920×1200@60Hz
Nominal Attenuation: 1 – 825Mhz < 12db
Minimum Bend Radius: 55mm (2.17in)
Operating Temperature: -20°C – 80°C (-4°F – 176°F)
Storage Temperature: -25°C – 85°C (-13°F – 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
