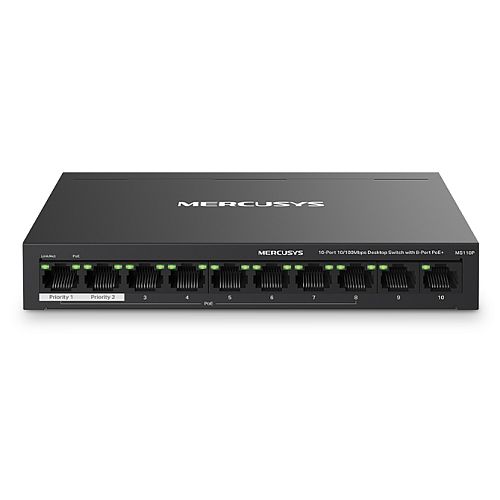

Mercusys (MS110P) 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Metal Case

Add to wishlist
Compare

Mercusys (MS110P) 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Metal Case

Add to wishlist
Compare

€54.50 incl. Vat

18 in stock

SKU: SWI-10MERPOE Category: Tag:

Description

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+


  • 10 Ports: 10x 10/100 Mbps RJ45 ports with 8 PoE+ ports
  • Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
  • 2x Uplink Ports: MS110P provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
  • Plug and Play: Simple to use and saves time and effort
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices




8 PoE+ Ports (65 W Budget) for Network Deployment
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
Power over Ethernet: Two Cables in One

No Fuss
No need for electricians; simplify installation and deployment.

Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility
Deployment in complex situations is made possible by more placement possibilities.

Power Management
Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.



Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.



Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2x uplink ports when turning on the isolation mode.




Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.




PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.




Plug and Play
MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.



Durable and Silent
MS110P’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.




*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Description

Specification

  • Rackmountable: No
  • Managed: No
  • Number of Ports: 10
  • Max RJ45 Transfer Rate: 10/100 Mbps
  • Interface(s): “10 x 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX”
  • PoE Ports (RJ45): Standard: Compliant with 802.3 af/at Powered Devices
    PoE Ports: Port 1- Port 8
    PoE Power Budget: 65 W
  • Standards and Protocols: IEEE 802.3x Flow Control
  • Power Supply: External Power Adapter (Output: 53.5V/1.31A)
  • Dimensions: 171 x 98 x 27 mm
  • Mac Address Table: 2K
  • Jumbo Frame: 2 KB
  • Additional Features: See Overview
  • Security: Isolation Mode
  • Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10%~90% RH non-condensing
    Storage Humidity: 5%~95% RH non-condensing
  • Package Contents: 10-Port Desktop Switch (MS110P)
    Power Adapter
    Quick Installation Guide
  • Package Type: Retail
  • Package Weight: 0.8200 kg
  • Warranty: 3 Years
  • #Hide#POE: Yes

Additional information

Weight 0.8200 kg
EAN
