Description

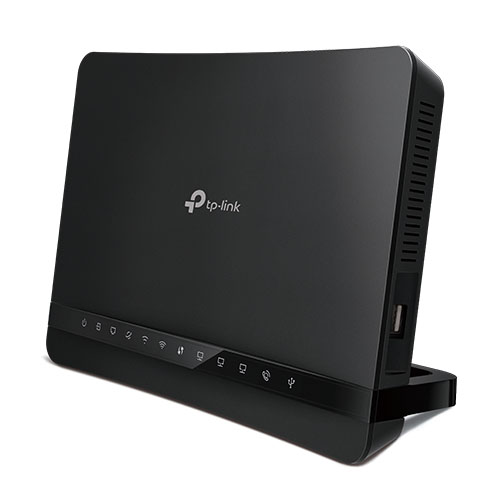

AC1200 Wireless Dual Band Gigabit VoIP VDSL/ADSL Modem Router
Archer VR1210v is a dual-band DSL modem router with multiple connection options and VoIP telephony feature. Equipped with MU-MIMO and beamforming technology, Archer VR1210v can efficiently serve multiple devices simultaneously. It is also compatible with the standard EasyMesh technology, the user can enjoy a true mesh network with great flexibility and simplicity.
Â
Super VDSL
Â
Â
The latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350 Mbps, while G.vector technology ensures advanced data transmission stability.
Â
Versatile Connectivity
Â
Â
Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, fiber and cable connection through Ethernet port, and 3G/4G internet services through USB port.
Â
AC1200 Dual Band Wi-Fi
Â
Â
Deliver total Wi-Fi speeds up to 1200 Mbps (867 Mbps on 5 GHz, and 300 Mbps on 2.4 GHz) for fast wireless connection and home entertainment.
Â
Easy Remote Management
Â
Â
TR-069 and TR-369 protocols, Aginet ACS, and TAUC (TP-Link Aginet Unified Cloud) are supported, service providers can manage multiple devices remotely.
Â
Standard Mesh Technology
Â
Â
Archer VR1210v adopts standard EasyMesh technology, all compatible units can work together to form a mesh network to cover every corner of the homes.
Â
Efficient Wi-Fi for Every Device
Â
Â
MU-MIMO technology serves multiple devices at once, reducing wait time, increasing Wi-Fi throughput for every device, All devices get their data faster and Wi-Fi is used more efficiently.
Â
Supports VoIP Calls
Â
Â
Support multiple VoIP accounts and various call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.
Â
Easy to Set up and Use
Â
Â
Whether you prefer the powerful Aginet app or the intuitive web interface, you can set up your device in minutes. The Agient app allows you to manage network settings from your smart phone or tablet.
Description
Specification
- Type: VDSL2/ADSL2 Router
- Connectivity: Wireless
- Wi-Fi Rating: AC1200
- Max Single Band Wi-Fi Rate: 867 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Bands: Dual Band
- Signal Rate: 5 GHz: 867 Mbps
2.4 GHz: 300 Mbps - Interface(s): 3 x 10/100/1000Mbps RJ45 LAN
1 x 10/100/1000Mbps RJ45 WAN
1 x DSL Port
1 x FXS Ports
1 x USB 2.0 - Standards: “Wireless: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
IEEE: IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2: ITU G.993.2, Up to 35b profile ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
ADSL: Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1 (G.DMT) ITU-T G.992.2 (G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2: ITU-T G.992.3 (G.DMT.bis) ITU-T G.992.4 (G.lite.bis)
ADSL2+: ITU-T G.992.5″
- Frequency: 2.4 GHz and 5 GHz
- Button(s): “Power On/Off Button, WPS On/Off Button, Wireless On/Off Button, Reset Button”
- Power Supply: External Power Supply: 12V/1.5A
- Antenna(s): 2 fixed omnidirectional internal antennas
Beamforming technology
Antenna Gain: 3 x 2dBi for 2.4GHz and 4 x 2dBi for 5GHz - Dimensions: (WxDxH) 214.0 x 144.5 x 80.0 mm
- Wireless Functions: “Enable/Disable Wireless Radio, WMM, Wireless Statistics”
- Security: “IPv4/IPv6 SPI Firewall, DDoS, Service Filtering, Access Control, IP&MAC
BindingWireless Security: WPA/WPA2/WPA3-PSK encryptions”
- DHCP: “DHCP Client, DHCP Server, DHCP Relay, Address Reservation, Condition
Pool” - Port/NAT Forwarding: “ALG, Virtual Server, Port Trigger, DMZ, uPnP”
- VPN Support: “PPTP, IPSec, OpenVPN”
- Management: “Local management:
WebGUI management, Aginet app management
Remote management: TR-069, TR-098, TR-181, TR-369, TR-111,
TR-143, Aginet ACS
Cloud management:
TAUC” - Dynamic DNS: “NO-IP, DynDNS, TP-Link DNS”
- USB Application: “Samba, FTP, Media Server, 3G/4G Backup”
- Additional Features: “VoIP, Parental Control, Firewall, IPSEC VPN, IPv6, Port Forwarding, NAT
Forwarding, Address Reservation, QoS(Quality of Service), CWMP,
Network Diagnosis, Traffic Statistic, Cloud upgrade, MU-MIMO, EasyMesh” - Environment: Operating Temperature: 0°C–40°C (32°F–104°F)
Storage Temperature: -40°C–60°C (-40°F–140°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing - Package Contents: 1 x DSL VoIP Modem Router Archer VR1210v
1 x RJ11 Cable
1 x RJ45 Ethernet Cable
1 x Power Adapter
1 x Quick Installation Guide - Package Type: Retail
- Package Weight: 1.0000 kg
- Warranty: 3 Years
- #Hide#Wireless Standard: Wi-Fi 5 (802.11ac)
- #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
