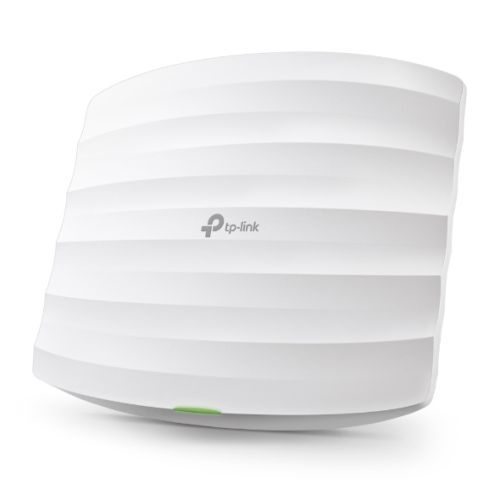

TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free Software

TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free Software

Add to wishlist
Compare

TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free Software

Add to wishlist
Compare

€104.92 incl. Vat

89 in stock

SKU: AP-1350TPEAP225 Category: Tag:

Description

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point


  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient



Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.



Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.



Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.



Multiple PoE Options for Easy Installation.
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.



Unified Wi-Fi for Multi-user Business Environment
The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.


Wireless Functions

  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Band Steering
  • Load Balance
  • MU-MIMO
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client



Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
  • Bands: Dual Band
  • Wi-Fi Rating: AC1350
  • Max Single Band Wi-Fi Rate: 867 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x Gigabit Ethernet (RJ-45) Port
  • Wireless Standards: IEEE 802.11ac/n/g/b/a
  • Antenna(s): Internal Antenna:
    2.4 GHz: 3x 4 dBi
    5 GHz: 2x 5 dBi
  • Button(s): Reset
  • Power Supply: “802.3af/at PoE
    24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)”
  • Power Consumption: 10.5 W
  • Dimensions: 205.5 x 181.5 x 37.1 mm
  • Weatherproof: No
  • Frequency: 2.4GHz and 5GHz
  • Wireless Functions: “Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    Band Steering
    Load Balance
    MU-MIMO
    Airtime Fairness
    Beamforming”
  • .: “Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    Band Steering
    Load Balance
    MU-MIMO
    Airtime Fairness
    Beamforming”
  • Security: Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
  • Management: “Omada App
    Omada Hardware Controllers – OC300 & OC200
    Omada Software Controller
    Omada Cloud-Based Controller
    EAP Controller Software
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP v1,v2c
    Local/Remote Syslog
    Telnet
    SSH
    HTTP/HTTPS
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning”
  • Environment: Operating Temperature: 0C~40C (32F~104F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: Access Point EAP225
    Passive PoE Adapter
    Power Cord
    Ceiling and Wall Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 0.9600 kg
  • Warranty: Limited Lifetime

Additional information

Weight 0.9600 kg
