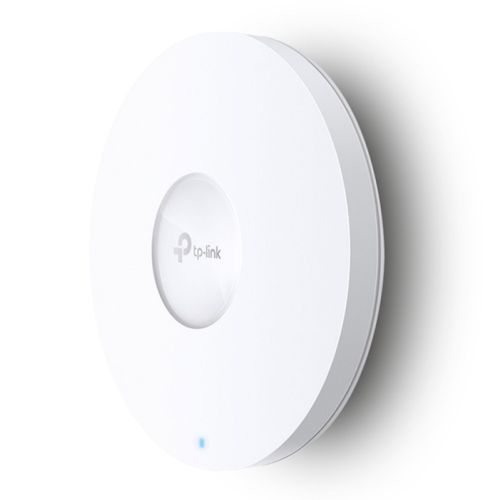

TP-LINK (EAP620 HD NEW) AX1800 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE, GB LAN, MU-MIMO, Free Software

TP-LINK (EAP620 HD NEW) AX1800 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE, GB LAN, MU-MIMO, Free Software

Add to wishlist
Compare

TP-LINK (EAP620 HD NEW) AX1800 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE, GB LAN, MU-MIMO, Free Software

Add to wishlist
Compare

€181.57 incl. Vat

10 in stock

SKU: AP-1800TPEAP620HDN Category: Tag:

Description



AX1800 Wireless Dual Band Ceiling Mount Access Point


  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE Power Supply: With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Easy-Mount Design
The Ceiling Mount EAP’s elegant appearance and easy-mount design promote fast installation on any wall or ceiling surface, and allow it to blend in seamlessly with most interior decorating styles. The slimline, inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86 mm wall junction box.



PoE Power Supply
With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.




Business-Class Hardware Design
Enterprise-class chipsets offer outstanding performance and support longer running time, higher client capacity and greater range. Dedicated high-power amplifiers, specialized antennas and professionally designed RF shields ensure excellent wireless performance.




Seamless Roaming
802.11k and 802.11v seamless roaming provide seamless switching to the access point with optimal signal when moving between APs.




Mesh
Omada Mesh technology enables wireless connectivity between access points for extended range, making wireless deployments more flexible and convenient.





Increased Efficiency with OFDMA
The Wi-Fi 6 standard uses OFDMA for more efficient channel use and reduced latency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac Wi-Fi, each delivery truck could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.





Advanced RF Management
MU-MIMO, Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications. Easy Centralized Management Configure and monitor hundreds of Omada EAPs with ease using the Omada controller




Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Wi-Fi Rating: AX1800
  • Max Single Band Wi-Fi Rate: 1200 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x Gigabit Ethernet Port
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Antenna(s): Internal Omni
    2.4 GHz: 2 x 4 dBi
    5 GHz: 2 x 5 dBi
  • Button(s): Reset bhutton
  • Power Supply: “802.3at PoE, 12V/1.5A DC, 48V Passive PoE”
  • Power Consumption: 14.4 W
  • Dimensions: 160 x 160 x 33 mm
  • Weatherproof: No
  • Frequency: 5GHz: Up to 1201Mbps
    2.4GHz: Up to 574Mbps
  • Wireless Functions: Enable/Disable Wireless Radio
    Enable/Disable SSID Broadcast
    Guest Network
    Automatic Channel Assignment
    Transmit Power: Control Adjust transmit Power on dBm
    QoS (WMM)
    Seamless Roaming
    Mesh
    Beamforming
    MU-MIMO
  • .: Rate Limit: Based on SSID/Client
    Load Balance
    Airtime Fairness
    Band Steering
    RADIUS Accounting
    MAC Authentication
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics
    Static IP/Dynamic IP
  • Security: “Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
  • Quality of Service: QoS(WMM)
  • Management: “LED ON/OFF Control
    Management MAC Access Control
    Web-based Management
    Telenet
    SNMP: v1, v2c, v3
    SSH
    Restore & Backup
    Firmware update via Web
    NTP
    System Log
    Email Alerts”
  • Additional Features: See Overview
  • Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: EAP620 HD
    Power Adapter
    Ceiling/Wall Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 0.8100 kg
  • Warranty: Limited Lifetime

Additional information

Weight 0.8100 kg
EAN
