TP-LINK (EAP655-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 3x GB LAN, OFDMA, Free Software

Add to wishlist
Compare

TP-LINK (EAP655-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 3x GB LAN, OFDMA, Free Software

Add to wishlist
Compare

€141.22 incl. Vat

22 in stock

SKU: AP-3000TPEAP655-WALL Category: Tag:

Description

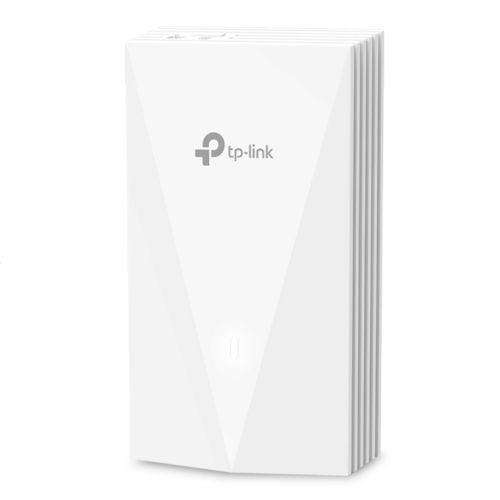

AX3000 Wall Plate WiFi 6 Access Point


  • Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.



Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps

Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.

Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.

Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network – all controlled from a single interface.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.




Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Wi-Fi Rating: AX3000
  • Max Single Band Wi-Fi Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): “Uplink:
    1 x 10/100/1000 Mbps Ethernet Port

    Downlink:
    3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out”

  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Antenna(s): 2 Dual-Band Antennas
    2.4 GHz: 2x 3 dBi
    5 GHz: 2x 5 dBi
  • Protection: “Reset, LED”
  • Power Supply: 802.3af/at PoE
  • Power Consumption: “12W (802.3at PoE, PoE Out off)”
  • Dimensions: 143 x 86 x 42.6 mm
  • Weatherproof: No
  • Frequency: 2.4 GHz and 5 GHz
  • EIRP: “<20 dBm (2.4GHz, EIRP)
    <23 dBm (5GHz band1 & 2, EIRP)
    <26 dBm (5GHz band3, EIRP)"
  • Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    Seamless Roaming§
    Beamforming
    Rate Limit
    Load Balance
    Airtime Fairness
  • .: Band Steering
    Reboot Schedule
    Wireless Schedule
    RADIUS Accounting
    MAC Authentication
    Wireless Statistics
    Static IP/Dynamic IP
  • Security: “Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    VLAN
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
  • Quality of Service: QoS(WMM)
  • Management: “Omada App
    Omada Hardware Controller (OC300)
    Omada Hardware Controller (OC200)
    Omada Software Controller
    Omada Cloud-Based Controller
    Cloud Access – Requires Controller
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP v1, v2c, v3
    System Logging Local/Remote Syslog
    SSH
    Web-based Management: HTTP/HTTPS
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning – Requires Cloud-Based Controller”
  • Additional Features: See Overview
  • Environment: Operating Temperature: 0–40 °C (32–104 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: AX3000 Wall Plate WiFi 6 Access Point
    Installation Guide
    Mounting Kits
  • Package Type: Retail
  • Package Weight: 0.4500 kg
  • Warranty: Limited Lifetime

Additional information

Weight 0.4500 kg
EAN
