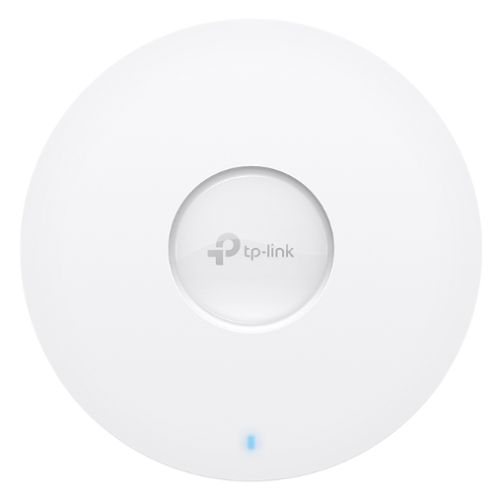

TP-LINK (EAP673) AX5400 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, 2.5G LAN

Add to wishlist
Compare

TP-LINK (EAP673) AX5400 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, 2.5G LAN

Add to wishlist
Compare

€178.55 incl. Vat

9 in stock

SKU: AP-5400TPEAP673 Category: Tag:

Description

AX5400 Ceiling Mount WiFi 6 Access Point

  • Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).
  • Integrated into Omada SDN, supporting centralized cloud Management, ZTP, and more.
  • 160 MHz Channel double the data at peak transmission times on a single stream.
  • Advanced features: Supports seamless roaming§,Omada Mesh, and more.
  • Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.
  • 2.5GE Wired Performance: Boosts overall throughput with a 2.5 Gbps Ethernet port
  • Auto Channel Selection and Power Adjustment: Optimize overall performance by reducing WiFi interference
  • Omada Mesh Technology: More flexible and convenient wireless deployment
  • Seamless Roaming: Uninterrupted streaming when moving between APs





Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Boosted Network Security and Efficiency Security

Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments





Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Wi-Fi Rating: AX5400
  • Max Single Band Wi-Fi Rate: 4804 Mbps
  • Max Wired Transfer Rate: 2.5 Gbps
  • Interface(s): 1 x 2.5 Gigabit Ethernet (RJ-45) Port
    Supports IEEE802.3at PoE
  • Antenna(s): Internal Omni:
    2.4 GHz: 2x 4 dBi
    5 GHz: 4x 5 dBi
  • Button(s): Reset
  • Power Supply: 802.3at PoE
    12 V / 2 A DC (Power adapter not included)
  • Power Consumption: 20.8 W
  • Weatherproof: No
  • Frequency: 5 GHz: Up to 4804 Mbps
    2.4 GHz: Up to 574 Mbps
  • EIRP: “<20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz, , band1 & band2, EIRP)
    <30 dBm(5 GHz, , band3, EIRP)"
  • Wireless Functions: “1024-QAM
    4x Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    MU-MIMO
    HE160 (160 MHz Bandwidth)
    Seamless Roaming
    Omada Mesh
    Band Steering
    Load Balance
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client”
  • Security: “Captive Portal Authentication§
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
  • Management: “Omada App
    Centralized Management
    Omada Hardware Controller (OC200 & OC300)
    Omada Software Controller
    Omada Cloud-Based Controller
    Cloud Access – Requires controller
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP: v1, v2c, v3
    System Logging Local/Remote Syslog
    Web-based Management
    SSH
    Web-based Management: HTTP/HTTPS
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning – Requires Cloud-Based Controller”
  • Environment: Operating Temperature: 0–40 °C (32–104 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: EAP673
    Ceiling/Wall Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 1.3300 kg
  • Warranty: Limited Lifetime

Additional information

Weight 1.3300 kg
