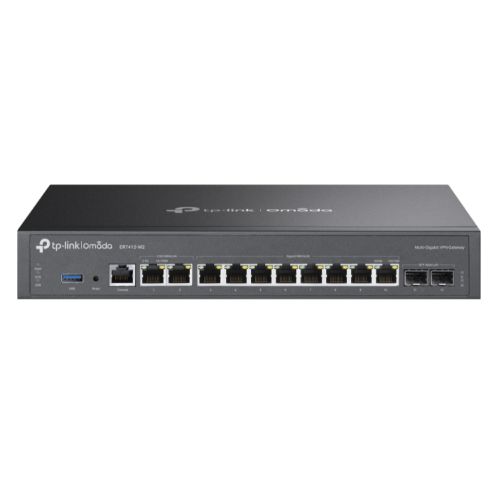

TP-LINK (ER7412-M2) Omada Multi-Gigabit VPN Router, Quad-Core CPU, 2x 2.5G WAN/LAN, 2x GB SFP, 8x GB RJ45, USB 3.0

Add to wishlist
Compare

TP-LINK (ER7412-M2) Omada Multi-Gigabit VPN Router, Quad-Core CPU, 2x 2.5G WAN/LAN, 2x GB SFP, 8x GB RJ45, USB 3.0

Add to wishlist
Compare

€353.06 incl. Vat

6 in stock

SKU: ROU-VPNMGBER7412-M2 Category: Tag:

Description

Omada Multi-Gigabit VPN Router

  • Quad-core @2.0GHz CPU
  • 2x 2.5G RJ45 WAN/LAN ports
  • 10x Gigabit WAN/LAN Ports (2x SFP, 8x RJ45)
  • 1x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 11 WAN ports increases the utilization rate of multi-line broadband
  • High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralized cloud management via the web or the Omada app
  • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security


Engineered for Dense Environments, Powered by Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.


Load Balancing on up to 11 WAN Ports
Distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.



1x USB 3.0 port
(Supports USB storage, and LTE backup with LTE dongle)



Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.



High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.



DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).


IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. Additionally, there is an embedded, regularly updated signature database for attack prevention.



DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.


Description

Specification

  • Type: VPN Router
  • Connectivity: Wired
  • Max Single Band Wi-Fi Rate: None
  • Max Wired Transfer Rate: 2.5 Gbps
  • Interface(s): “1 x 2.5G RJ45 WAN/LAN Port
    1 x 2.5G RJ45 WAN/LAN Port
    2 x Gigabit SFP WAN/LAN Ports
    8 x Gigabit RJ45 WAN/LAN Ports
    1 x RJ45 Console Port
    1 x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)”
  • IEEE Standards & Protocols: “IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q

    TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP”

  • Button(s): Reset Button
  • Power Supply: “100–240 VAC, 50/60 Hz
    Max Power Consumption: 18.5W (With USB 3.0 connected)”
  • Dimensions: (WxDxH) 294 x 180 x 44 mm
  • Security: Access Control:
    Source/Destination IP-Based ACL
    Stateful ACL
    IPv4/IPv6 ACL
    Location Based ACL

    Filtering:
    WEB Group Filtering
    URL Filtering
    Web Security

    ARP Inspection:
    Sending GARP Packets
    ARP Scanning
    IP-MAC Binding

    Attack Defense:
    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN

  • DHCP: DHCP Server
    DHCPv6 PD Server (only in Standalone Mode)
    DHCP Options Customization
    DHCP Address Reservation
    Multi-IP Interfaces
    Multi-Net DHCP
  • Port/NAT Forwarding: “66 Byte Packet forwarding rate: 1833 Mbps / 1835 Mbps
    1,518 Byte Packet forwarding rate: 2461 Mbps / 2461 Mbps”
  • VPN Support: “GRE:
    Only in Standalone Mode

    SSL VPN:
    80 Tunnels

    IPsec VPN:
    150 IPSec VPN Tunnels
    LAN-to-LAN, Client-to-LAN
    Main, Aggressive Negotiation Mode
    DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    IPsec Failover
    IKE v1/v2
    MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
    NAT Traversal (NAT-T)
    Dead Peer Detection (DPD)
    Perfect Forward Secrecy (PFS)

    “

  • .: PPTP VPN:
    PPTP VPN Server
    PPTP VPN Client (15)
    150 Tunnels
    PPTP with MPPE Encryption

    L2TP VPN:
    L2TP VPN Server
    L2TP VPN Client (15)
    150 Tunnels
    L2TP over IPSec

    OpenVPN:
    OpenVPN Server
    OpenVPN Client (11)
    121 OpenVPN Tunnels
    “”Certificate + Account”” Mode
    Full Mode

    WireGuard VPN:
    20 Tunnels

  • Management: “Omada App / Centralized Management / Cloud Access:
    – Requires OC300, OC200, Omada Cloud or Software Controller

    Maintenance:
    Web Management Interface
    Remote Management
    Export & Import Configuration
    SNMP v1/v2c/v3
    Diagnostics (Ping & Traceroute)§
    NTP Synchronize
    Port Mirroring
    CLI (only in Standalone Mode)
    Syslog Support

    “

  • .: ” Service:
    Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

    Zero-Touch Provisioning:
    Requires Omada Cloud-Based Controller

    Management Features:
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule”

  • USB Application: “Supports USB storage, and LTE backup with LTE dongle”
  • Additional Features: Mounting: Desktop/Rackmountable
    Quad-core 2.0GHz CPU
    Flash: 128MB NAND
    DRAM: 1 GB DDR4
    Protection: 4 kV surge protection
    Enclosure: Steel

    See Overview/Manufacturers website for more details

  • Environment: “Operating Temperature: 0–45°C (32–113°F);
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% non-condensing”
  • Package Contents: ER7412-M2
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    RJ45 Console Cord
  • Package Type: Retail
  • Package Weight: 1.8900 kg
  • Warranty: Limited Lifetime

Additional information

Weight 1.8900 kg
