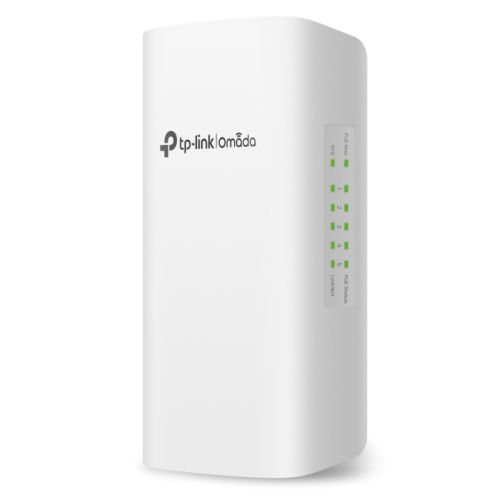

TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Outdoor Weatherproof, Centralized Management

Add to wishlist
Compare

TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Outdoor Weatherproof, Centralized Management

Add to wishlist
Compare

€121.04 incl. Vat

7 in stock

SKU: SWI-5TPOMASMAPOEPL-GB Categories: , , Tag:

Description

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

  • Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
  • Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
  • Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
  • Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.





PoE-Powered PoE Switch for Simplified Outdoor Network Deployment
Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • Powered by PoE++/PoE+/PoE
  • Max 64 W PoE Budget with 4 PoE+ Output Ports**
  • Double the PoE Distance up to 200 m without Losing Gigabit Speeds*
  • Full Gigabit Ports
  • Easy Installation with Pole-Mounting / Wall-Mounting
  • Waterproof and UV-Resistant Casing
  • Centralized and Multi-Site Management
  • Static Routing



Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.*

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.
  • Waterproof Enclosure
  • No Ingress of Dust
  • Operation Temperature of -40 to 60 °C
  • UV-Resistant Casing
  • 4KV Lightning Protection




Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences
  • Static Routing – Helps route internal traffic for more efficient use of network resources.
  • Access Control List (ACL) – ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
  • QoS for Lag-Free Experiences – Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.
  • VLAN for Security and Flexible Management – VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.





Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

*The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.

**PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

***Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Note that TL-SG2008P v2 doesn’t support Omada Cloud-Based Controller.



Description

Specification

  • Rackmountable: No
  • Managed: Smart
  • Number of Ports: 5
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x Gigabit RJ45 PoE In (compliance with 802.3af/at/bt)
    4 x Gigabit RJ45 PoE Out (compliance with 802.3af/at PoE)
  • PoE Ports (RJ45): “PoE In Port: Port 5, Compliance with 802.3af/at/bt
    PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE

    PoE Power Budget:
    – 64 W when powered by 802.3bt Type 4 (90 W)
    – 44 W when powered by 802.3bt Type 3 (60 W)
    – 19 W when powered by 802.3at
    – 6 W when powered by 802.3af”

  • Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
  • Switching Capacity: 10 Gbps
  • Power Supply: Obtain Power from 802.3af/at/bt PoE Source
    Max Power Consumption: 71.5 W (when powered by 802.3bt Type 4 (90 W))
  • Dimensions: (WxDxH) 100 x 38.5 x 170 mm
  • Mac Address Table: 8k
  • Packet Forwarding Rate: 7.44 Mpps
  • Jumbo Frame: 9 KB
  • Additional Features: Fanless
    Wall or Pole Mount
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
  • Quality of Service: 802.1p CoS/DSCP priority
    8 priority queues
    Priority Schedule Mode
    Queue Weight Config
    Bandwidth Control
    Smoother Performance
    Storm Control
  • Layer Features: L2 and L2+:
    32 IP Interfaces
    Static Routing
    DHCP Server
    DHCP Relay & DHCP L2 Relay
    Static & Proxy ARP
    Gratuitous ARP
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    Flow Control
    Mirroring
    Device Link Detect Protocol (DLDP)
    802.1ab LLDP/ LLDP-MED
  • .: “L2 Multicast:
    511 IPv4, IPv6 shared multicast groups
    IGMP Snooping
    Multicast VLAN Registration (MVR)
    Multicast Filtering
    MLD Snooping
    Limited IP Multicast (256 profiles & 16 entries per profile)”
  • VLAN: VLAN Group – Max. 4K VLAN Groups
    802.1Q tag VLAN
    MAC VLAN: 12 Entries
    Protocol VLAN
    GVRP
    Voice VLAN
  • Access Control: Support up to 230 entries
    Time-Range
    Time-based ACL
    MAC ACL
    IP ACL
    IPv6 ACL
    Combined ACL
    Rule Operation
    Policy Action
    ACL Rules Binding
    Actions for flows
  • Security: AAA
    802.1X
    IP/IPv6-MAC Binding
    IP Source Guard
    IPv6 Source Guard
    DoS Defend
    Static/Dynamic/Permanent Port Security
    Broadcast/Multicast/Unicast Storm Control
    Port Isolation
    Secure web management through HTTPS with SSLv3/TLS 1.2
    CLI management with SSHv1/SSHv2
    IP/Port/MAC-based access control
  • Management: “Omada App, Centralized Management & Cloud Access:
    Requires Omada Hardware, Cloud-Based or Software Controller

    Zero-Touch Provisioning:
    Requires Omada Cloud-Based Controller

    Management Features:
    CLI through telnet
    SNMPv1/v2c/v3
    SNMP Trap/Inform
    RMON (1,2,3,9 groups)
    SDM Template
    DHCP/BOOTP Client
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    SNTP”

  • Environment: Operating Temperature:0°C to 40 °C
    Storage Temperature: -40 °C to 70 °C
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: SG2005P-PD
    Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 0.4900 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes

Additional information

Weight 0.4900 kg
EAN
