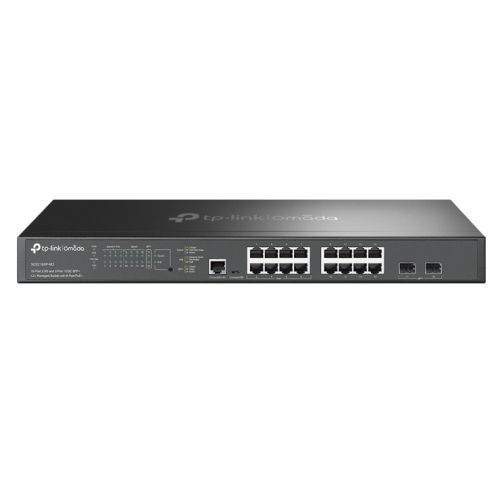

TP-LINK (SG3218XP-M2) Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, Rackmountable

Add to wishlist
Compare

TP-LINK (SG3218XP-M2) Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, Rackmountable

Add to wishlist
Compare

€574.98 incl. Vat

5 in stock

SKU: SWI-16TPOMAL2XP-M2 Categories: , , Tag:

Description

Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

  • 2.5G Ports for WiFi 7/6E/6: 8x 2.5 Gbps PoE+ ports & 8x 2.5 Gbps Non-PoE ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
  • 10G Lightning-Fast Uplink: 2x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • 240 W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 240 W.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.






Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE+ Ports
Featuring 8x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240W total PoE power budget* and flexible installation to fit in various application scenarios.

Enterprise Switch with 10G Uplink
2x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.



Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.



Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.



ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.



IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.



Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 16
  • Max RJ45 Transfer Rate: 2.5 Gbps
  • #Hide#Max SFP Transfer Rate: 10G SFP
  • Interface(s): 16 x 2.5 Gbps RJ45 Ports
    2 x 10G SFP+ Slots
    1 x RJ45 Console Port
    1 x Micro-USB Console Port
  • PoE Ports (RJ45): “Standard: 802.3at/af compliant
    PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port
    Power Budget: 240 W”
  • Switching Capacity: 120 Gbps
  • Power Supply: 100-240 V AC~50/60 Hz
    Max Power Consumption: 299.4 W (110V/60Hz)(with 240 W PD connected)
  • Dimensions: (WxDxH) 440 x 180 x 44 mm
  • Mac Address Table: 16 K
  • Packet Forwarding Rate: 89.28 Mpps
  • Jumbo Frame: 9 KB
  • Additional Features: Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
  • Quality of Service: “8 priority queues
    802.1p CoS/DSCP priority
    Queue scheduling
    Bandwidth Control
    Smoother Performance
    Action for Flows: QoS remark (802.1P Remark, DSCP Remark)”
  • Layer Features: L3 Features
    32 IPv4/IPv6 Interfaces
    Static Routing
    Static ARP
    Proxy ARP
    Gratuitous ARP
    DHCP Server
    DHCP Relay
    DHCP L2 Relay

    L2 and L2+ Features
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    Flow Control
    Mirroring

  • .: L2 Multicast
    IGMP Snooping
    IGMP Authentication
    MLD Snooping
    MVR
    Multicast Filtering: 256 profiles and 16 entries per profile
  • VLAN: “VLAN Group
    802.1Q Tagged VLAN
    MAC VLAN: 256 Entries
    Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    GVRP
    VLAN VPN (QinQ)
    Voice VLAN”
  • Access Control: Time-based ACL
    MAC ACL
    IP ACL
    Combined ACL
    Packet Content ACL
    IPv6 ACL
    Policy
    ACL apply to Port/VLAN
  • Security: IP-MAC-Port Binding
    IPv6-MAC-Port Binding
    DoS Defend
    Static/Dynamic Port Security
    Broadcast/Multicast/Unicast Storm Control
    802.1X
    AAA (including TACACS+)
    Port Isolation
    Secure web management through HTTPS with SSLv3/TLS 1.2
    Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    IP/Port/MAC based access control
  • Management: “Omada App
    Centralized Management
    Cloud Access
    Zero-Touch Provisioning

    Management Features:
    Web-based GUI
    CLI through the console port, telnet
    SNMP v1/v2c/v3
    SDM Template
    DHCP/BOOTP Client
    802.1ab LLDP/LLDP-MED
    DHCP AutoInstall
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    Password Recovery
    SNTP
    System Log”

  • Environment: Operating Temperature: 0–50°C (32–122°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: SG3218XP-M2 Switch
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 3.1900 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes

Additional information

Weight 3.1900 kg
