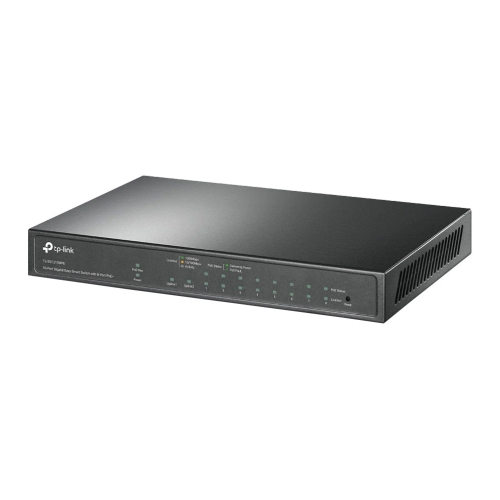

TP-LINK (TL-SG1210MPE) 10-Port Gigabit Easy Smart Switch with 8-Port POE+, 9-Port RJ45 & 1-Port Combo SFP/RJ45

Add to wishlist
Compare

TP-LINK (TL-SG1210MPE) 10-Port Gigabit Easy Smart Switch with 8-Port POE+, 9-Port RJ45 & 1-Port Combo SFP/RJ45

Add to wishlist
Compare

€161.40 incl. Vat

3 in stock

SKU: SWI-10TPEASYPOE-GB Category: Tag:

Description



10-Port Gigabit Easy Smart Switch with 8-Port PoE+


  • 9 x gigabit RJ45 ports and 1 combo gigabit SFP/RJ45 port
  • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise



What This Product Does
TP-Link TL-SG1210MPE is an easy smart switch with 9 gigabit RJ45 ports and 1 gigabit combo SFP/RJ45 port that requires no configuration. With 8 PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8 PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.


System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.


Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.


Durable Metal Casing
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Description

Specification

  • Rackmountable: No
  • Managed: Smart
  • Number of Ports: 10
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: GB SFP
  • Interface(s): 9 x 10/100/1000 Mbps RJ45 Ports
    1 x 1000 Mbps Combo SFP/RJ45 Port
    AUTO Negotiation/AUTO MDI/MDIX
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant
    PoE Ports: Port 1- Port 8
    PoE Power Budget: 123 W
  • Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z”
  • Switching Capacity: 20 Gbps
  • Power Supply: External Power Adapter (Output: 53.5 VDC/2.43 A)
  • Dimensions: 209 x 126 x 26 mm
  • Transfer Method: Store-And-Forward
  • Mac Address Table: 4K
  • Packet Forwarding Rate: 14.88 Mpps
  • Jumbo Frame: 16 KB
  • Additional Features: See Overview
  • Quality of Service: Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
  • Layer Features: L2 Features:
    IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
  • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
  • Management: Web-based GUI
    Easy Smart Configuration Utility
  • Environment: Operating Temperature: 0C~40C (32F~104F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90%RH non-condensing
    Storage Humidity: 5%~95%RH non-condensing
  • Package Contents: TL-SG1210MPE
    Power Adapter
    Installation Guide
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 1.6100 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes

Additional information

Weight 1.6100 kg
