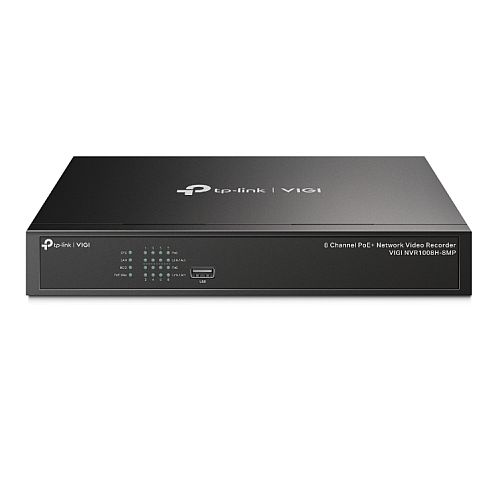

TP-LINK (VIGI NVR1008H-8MP) 8 Channel PoE+ Network Video Recorder, 4K HDMI Output, 16MP Decoding Capacity, H.265+, ONVIF, Two-Way Audio

Description

VIGI 8 Channel PoE+ Network Video Recorder

• 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.
• Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
• 8-Channel Simultaneous Playback: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Description

Specification

• Access Camera Number: 8
• Wired Access Bandwidth: Incoming: 80 Mbps
  Outgoing: 60 Mbps
• Interface(s): 1 x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
  2 x USB 2.0
  Audio in and audio out
  Audio In and Audio Out
  1 x HDMI
  1 x VGA
  8 x PoE+ ports
• Video Codec: H.265+
• Video Input/Output: “Input:
  8-Channel IP Video Input, up to 8 MP Resolution

  Recording Resolution:
  8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCI

  HDMI Output:
  1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz,
  1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz,
  1024×768/60Hz, 1280×720/60Hz

  VGA Output:
  1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz,
  1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz,
  1280×720/60Hz”

• Decoding: “Decoding Format:
  H.265+/H.265/ H.264+/H.264

  Live View/Playback Resolution:
  8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  Synchronous Playback:
  8 Channel

  Capability:
  2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP”

• HDD: 1 x 3.5″” SATA
  Up to 10 TB
• Power Supply: External Power Supply: 53.5V DC/2.43 A
• Power Consumption: 4.82 W (without disk)
• Weight/Dimensions: (HxWxD) 294 x 180 x 44 mm
• Package Contents: VIGI Network Video Recorder
  Power Adapter
  HDD Screws
  Mouse
  Quick Installation Guide
• Additional Features: See Overview
• Package Weight: 2.4200 kg
• Warranty: 3 Years
