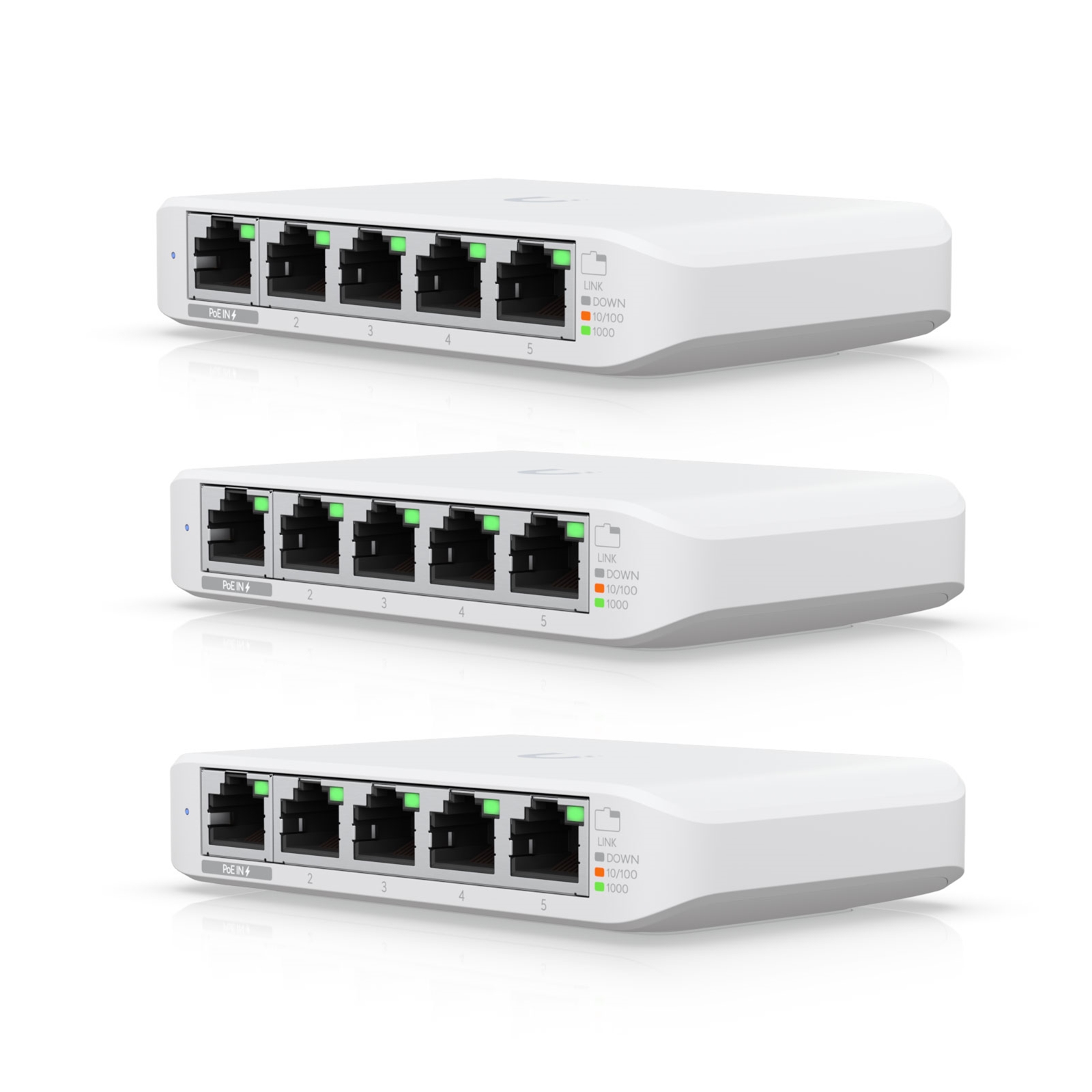

Ubiquiti USW-FLEX-MINI-3 UniFi USW Flex Mini 5 Port Smart Managed POE/USB C Powered Gigabit Network Switch (Triple Pack, No PSU)

Description

PLEASE NOTE THAT POWER SUPPLIES ARE NOT INCLUDED

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

Build and expand your network with the UniFi Switch, part of the Ubiquiti Networks UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

Works with UniFi Network Controller
Manage Your Networks from a Single Control Plane
Intuitive and Robust Configuration, Control and Monitoring
Remote Firmware Upgrade
Users and Guests
Guest Portal/Hotspot Support

Specifications

Dimensions
107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83″)

Weight
150 g
(5.29 oz)

Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports

PoE In Interface
802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max Power Consumption
2.5W

Power Method
USB Type C, 5V
802.3af/at PoE (44 – 57VDC, 0.05 – 0.04A)

Power Supply
Not Included – USB C

Voltage Range
USB Type C – 4.7 – 5.2VDC
802.3af/at PoE – 44 – 57VDC

LEDs
System – Status
RJ45 Data Ports – Link/Speed/Activity

ESD/EMP Protection
± 16kV Air, ± 12kV Contact

Operating Temperature
-5 to 45C (23 to 113F)

Operating Humidity
10 to 90% Noncondensing

Certifications
CE, FCC, IC
